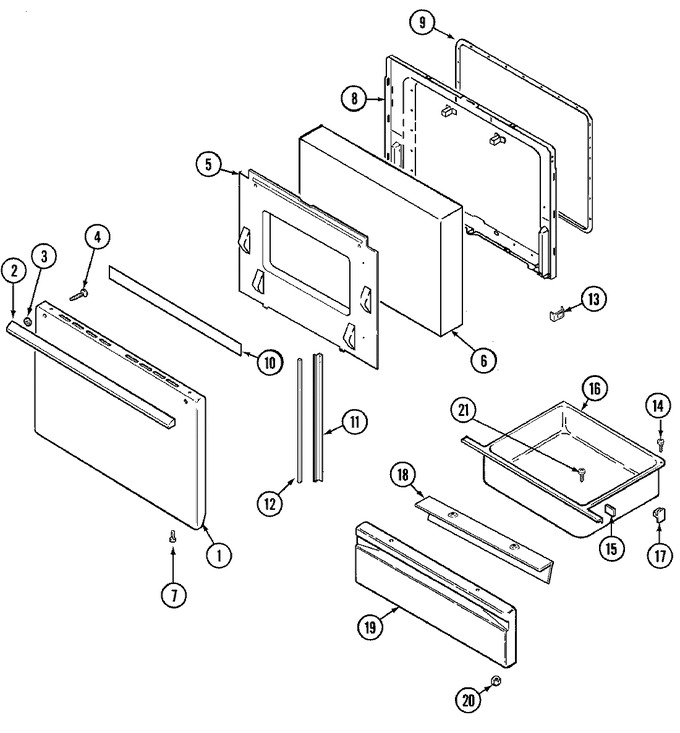

03 - Door/drawer (3458kvx)


04 - Gas Controls


05 - Oven/base


06 - Top Assembly


07 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74002092		Panel, Door (blk)	10	Appelez-nous	-
2	WP2411F013-70		Handle, Drawer (blk)   (Replaces: 2411F003-70)	10			$ 186.01
3	8010P084-60		Spacer, Handle (blk)	10	Appelez-nous	-
4	WP3387230		Screw, Clamp   (Replaces: 7101P080-60)	10		Immediately	$ 7.69
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
5	3601F218-51		Baffle, Door Solid	10	Appelez-nous	-
6	4804F051-60		Insulation, Door	10	Appelez-nous	-
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
8	2402W210-19		Lining, Door	10	Appelez-nous	-
8	74003245		Lining, Door	41	Appelez-nous	-
9	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
10	8270P078-60		Tape, Foil (29 1/2``)	10	Appelez-nous	-
11	3818F052-80		Channel, Air	10	Appelez-nous	-
12	7208P002-60		Seal	10	Appelez-nous	-
13	7112P034-60		Clip, Door	10	Appelez-nous	-
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
15	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	10			$ 11.95
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
16	3405F018-80		Drawer, Storage	10	Appelez-nous	-
17	8004P026-60		Support, Drawer (rear)	10			$ 9.29
18	2404F030-51		Lining, Drawer Panel	10	Appelez-nous	-
18	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
19	2416F038-62		Panel, Drawer (wht)	10	Appelez-nous	-
20	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
21	WP7101P072-60		Screw   (Replaces: 7101P072-60)	10			$ 6.77
