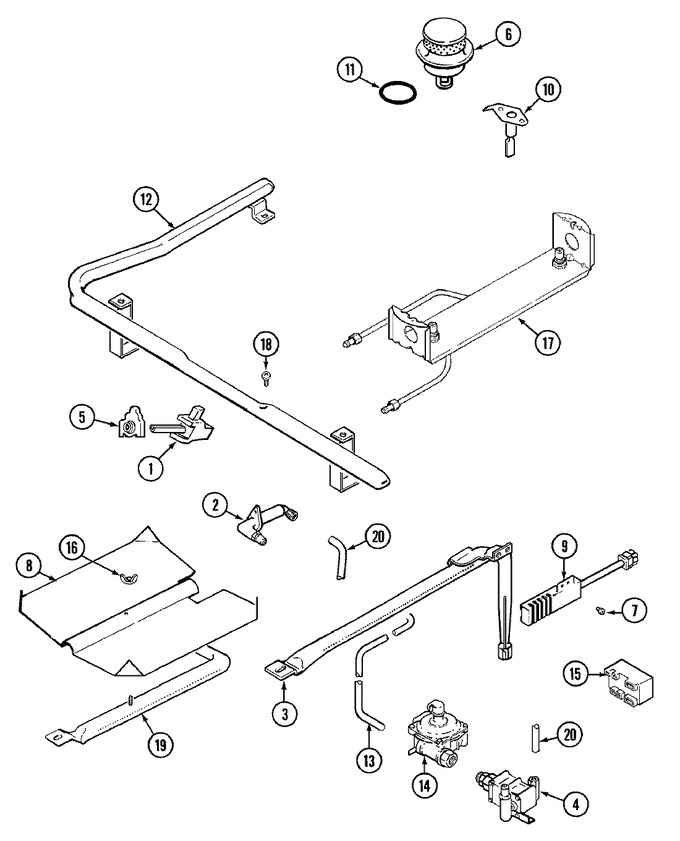

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7502P219-60		Valve, Top Burner	10	Appelez-nous	-
2	3605F186-45		Plate, Fitting	10	Appelez-nous	-
2	7507P088-60		Fitting, Broil Burner	10	Appelez-nous	-
2	WP3387230		Screw, No.10 X .5 Tya   (Replaces: 7101P274-60)	10		Immediately	$ 7.69
2	7101P287-60		Screw, Metal Grounding	10			$ 12.03
3	4005F429-51		Cover, Valve	10	Appelez-nous	-
3	3403D043-45		Burner, Bake	10	Appelez-nous	-
3	3807F446-45		Support, Burner	10	Appelez-nous	-
3	WP3351614		Screw   (Replaces: 7101P328-60)	10		Immediately	$ 6.26
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
4	WP74006427		Valve, Oven   (Replaces: 7501P097-60)	10			$ 313.44
5	7403P284-60		Switch, Burner	10			$ 55.80
6	7101P343-60		Screw	10	Appelez-nous	-
6	WP3412D024-09		Sealed Burner Assy. (blk)   (Replaces: 3412D018-09)	10		Immediately	$ 92.69
7	WP3351614		Screw   (Replaces: 7101P328-60)	10		Immediately	$ 6.26
8	3601F217-47		Baffle, Broil Burner	10	Appelez-nous	-
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
9	4005F421-45		Cover,igniter	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
9	12400035		Igniter, Oven   (Replaces: 7432P076-60)	10		Immediately	$ 60.44
9	WP3351614		Screw   (Replaces: 7101P328-60)	10		Immediately	$ 6.26
10	W10124350		Not Required Part Or See Note Igniter Not Sold Separately (must Order Sealed Burner- Item No.6)	10	Appelez-nous	-
10	WP59002061		Screw   (Replaces: 7101P315-60)	10			$ 6.98
11	WP3412D024-09		Gasket, Burner   (Replaces: 7201P050-60)	10		Immediately	$ 92.69
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
12	7513P120-60		Pipe, Manifold	10	Appelez-nous	-
13	7103P130-60		Nut, Loxit (3/8``)	10			$ 8.20
13	1555258K		3/8`` Nut & Ferrule	10	Appelez-nous	-
13	3414F103-44		Tubing, Regulator/pipe (3/8``)	10	Appelez-nous	-
14	WP74006429		Regulator, Pressure   (Replaces: 7510P067-60)	10			$ 282.77
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
15	12001596		Module, Spark   (Replaces: 74003288)	40		Immediately	$ 85.93
15	12001596		Module, Spark   (Replaces: 7431P027-60)	10		Immediately	$ 85.93
15	3807F473-51		Support, Spark Module	10	Appelez-nous	-
15	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
16	7103P030-60		Nut, Wing	10			$ 6.37
17	5187D025-60		Orifice Fitting Assy	10	Appelez-nous	-
18	7101P044-60		Screw, Valve	10	Appelez-nous	-
19	3403D024-45		Burner, Broil	10	Appelez-nous	-
19	7101P287-60		Screw, Metal Grounding	10			$ 12.03
20	3414F102-44		Tubing, Broil Burner (3/8``)	10	Appelez-nous	-
20	7103P130-60		Nut, Loxit (3/8``)	10			$ 8.20
20	1555258K		3/8`` Nut & Ferrule	10	Appelez-nous	-
21	5140D035-60		Wires, Igniter	10	Appelez-nous	-
21	5125A312-60		Harness, Loose/burner Box	10	Appelez-nous	-
22	W10124350		Not Required Part Or See Note Lp Conversion Kit - N/a (converted On The Unit)	10	Appelez-nous	-
