02 - Backguard
03 - Cooktop Parts

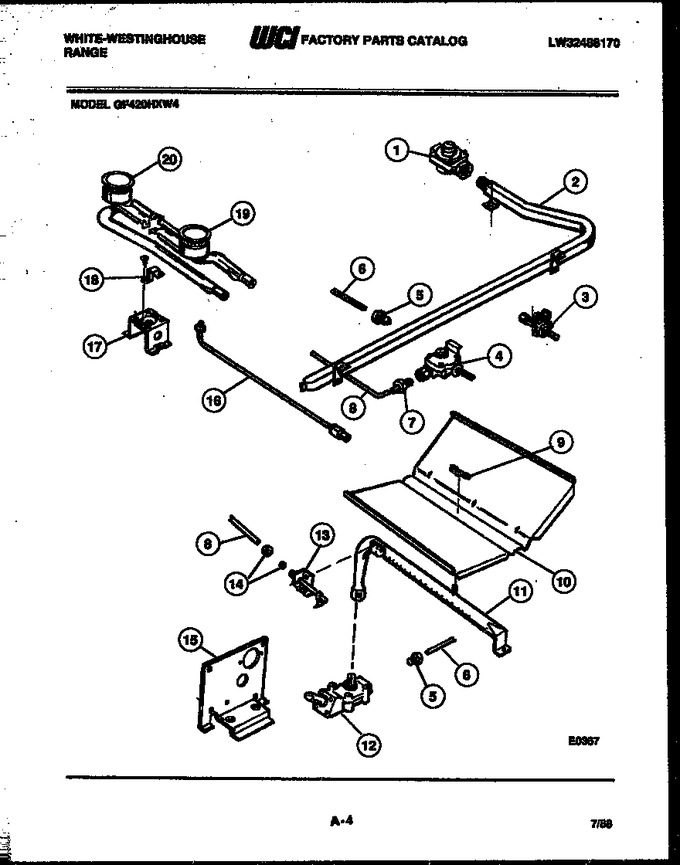

04 - Burner, Manifold And Gas Control
05 - Body Parts
06 - Door Parts
07 - Broiler Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | AP00310007 | Pressure Regulator |
|
- | |||||
| 2 | Q000310059 | Manifold |
|
- | |||||
| 3 | Q000301873 | Valve-top Burner |
|
- | |||||
| 5 | AP000269017 | Nut |
|
- | |||||
| 6 | AP00377125 | Tubing-oven Feed |
|
- | |||||
| 7 | AP00269018 | Nut |
|
- | |||||
| 8 | AP00377082 | Tubing |
|
- | |||||
| 9 | AP00269004 | Wing Nut |
|
- | |||||
| 10 | AP00901000 | Baffle Oven Burner |
|
- | |||||
| 11 | Q000301880 | Burner-oven |
|
- | |||||
| 12 | Q000301872 | Valve Safety |
|
- | |||||
| 13 | Q000301826 | Pilot-oven |
|
- | |||||
| 14 | Q000301878 | Nut-sleeve |
|
- | |||||
| 15 | A074054000 | Valve-support |
|
- | |||||
| 16 | Q000310058 | Pilot-top Burner |
|
- | |||||
| 17 | 3016870 | Support - Top Burner |
|
- | |||||
| 18 | Q000301966 | Bracket |
|
- | |||||
| 19 | Q002500101 | Burner, Top Front |
|
- | |||||
| 20 | Q002500102 | Burner, Top Rear |
|
- | |||||
| *11921 | Q000301859 | Thermostat |
|
- |
