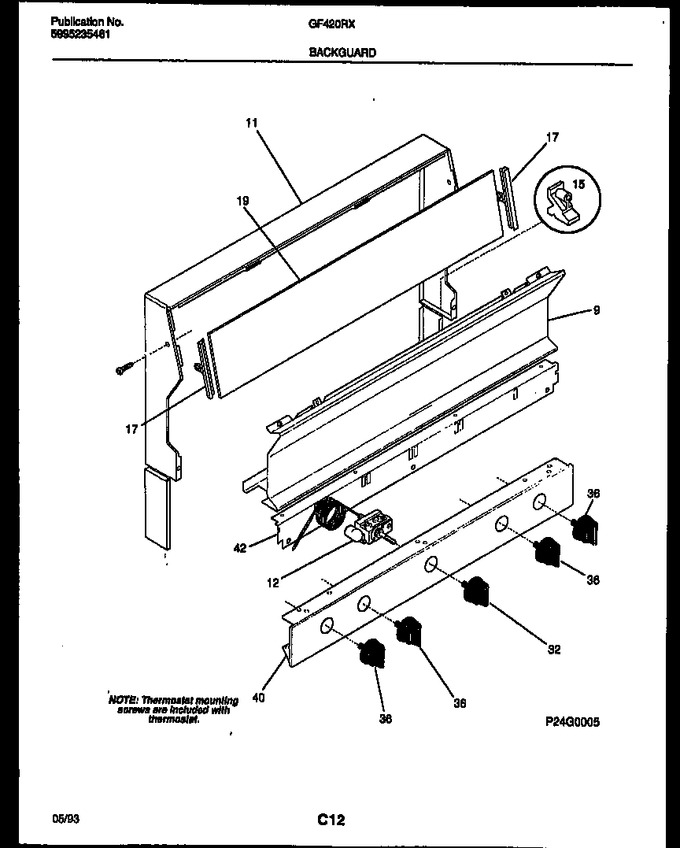

02 - Backguard
03 - Burner, Manifold And Gas Control
04 - Body Parts
05 - Cooktop And Broiler Drawer Parts
06 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 9 | 316012502 | Trim-splasher, Almond |
|
- | |||||
| 11 | 3206461 | Trim-wrapper |
|
- | |||||
| 12 | 5303935014 | Thermostat-oven |
|
- | |||||
| 15 | 5303131237 | Support-backguard,(2) |
|
- | |||||
| 17 | 3131240 | Trim-glass Retainer, (2) |
|
- | |||||
| 19 | 316045801 | Panel-control, Glass |
|
- | |||||
| 32 | 5303295884 | Knob-thermostat |
|
- | |||||
| 36 | 5303211139 | Knob-top Valve, (4) |
|
- | |||||
| 40 | 5303211141 | Panel-manifold |
|
- | |||||
| 42 | 3131241 | Trim-vent |
|
- |
