02 - Backguard
03 - Cooktop Parts
04 - Burner, Manifold And Gas Control
05 - Body Parts
06 - Broiler Drawer Parts
07 - Door Parts
SELECT A DIAGRAM
New Model Search:

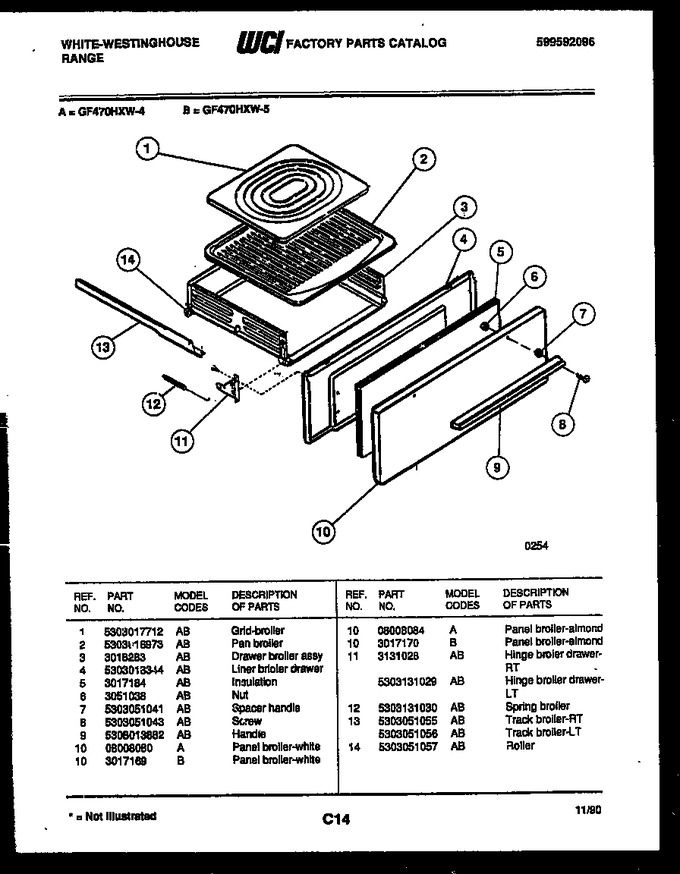

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017712 | Grid-broiler |
|
- | |||||
| 2 | 5303016973 | Pan-broiler |
|
- | |||||
| 3 | 3018283 | Drawer-broiler Assy. |
|
- | |||||
| 4 | 5303018344 | Liner-broiler Drawer |
|
- | |||||
| 5 | 3017184 | Insulation |
|
- | |||||
| 6 | 3051038 | Nut |
|
- | |||||
| 7 | 5303051041 | Spacer Handle |
|
- | |||||
| 8 | 5303051043 | Screw |
|
- | |||||
| 9 | 5308013882 | Handle |
|
- | |||||
| 10 | 3017170 | Panel Broiler-almond |
|
- | |||||
| 11 | 3131028 | Hinge Broiler Drawer Rt |
|
- | |||||
| 12 | 5303131030 | Spring-broiler |
|
- | |||||
| 13 | 5303051055 | Track-broiler Rt |
|
$ 56.60 | |||||
| 14 | 5303051057 | Roller |
|
- | |||||
| 11A | 5303131029 | Hinge Broiler Drawer-lt |
|
- | |||||
| 13A | 5303051056 | Track Broiler Lt |
|
$ 78.44 |
