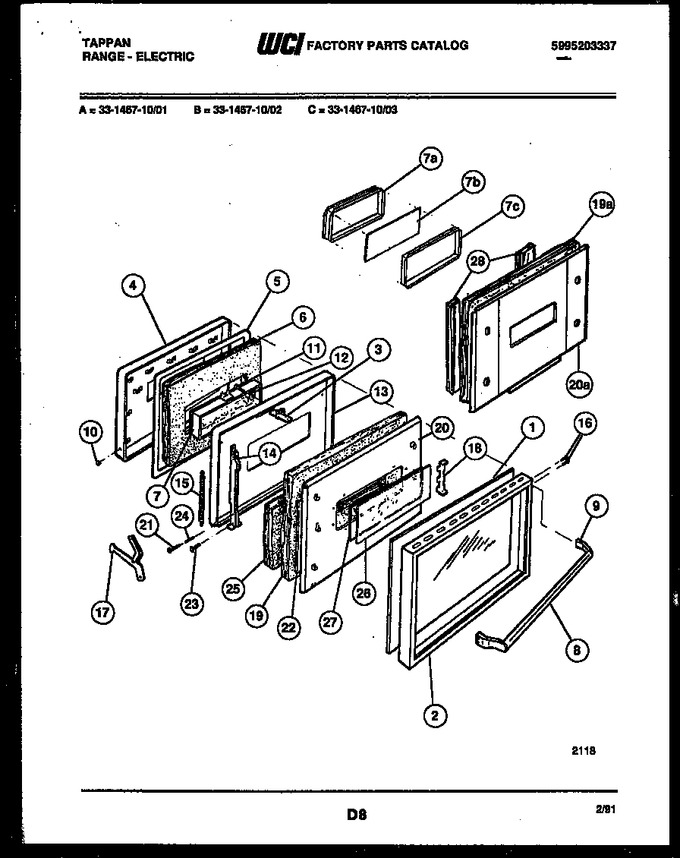

02 - Door Parts


03 - Broiler Parts


04 - Cooktop Parts


05 - Control Panel


06 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308012546		Glass, Outer		Appelez-nous	-
2	5308015938		Frame, Door		Appelez-nous	-
3	5301167830		Strike-door		Appelez-nous	-
4	5303269674		Baffle-oven Door		Appelez-nous	-
5	5303051704		Gasket - Oven Door				$ 388.08
6	5303269528		Insulation-baffle		Appelez-nous	-
10	3051807		Button, Plug (2)		Appelez-nous	-
13	3017468		Door Liner		Appelez-nous	-
14	3051565		Chanl Hng (2)		Appelez-nous	-
15	5308003186		Spring - Door (2)		Appelez-nous	-
16	5303051860		Screw, Handle (4)		Appelez-nous	-
17	5308003183		Door Hng Arm (2)				$ 90.35
21	3051567		Rivet-sq Hd (2)		Appelez-nous	-
23	5308012004		Axle (2)				$ 8.29
24	5301167752		Roller (2)		Appelez-nous	-
25	3051788		Insulation, Liner		Appelez-nous	-
27	5303269535		Gasket, Window		Appelez-nous	-
28	5303269530		Insulation, Airwash (2)		Appelez-nous	-
11A	08002868		Screw 10 X 24 X 1/2				$ 14.18
19A	5303269529		Insul-airwash		Appelez-nous	-
20A	5303269570		Panel, Airwash		Appelez-nous	-
26A	5303209512		Glass-heat Barrier				$ 150.41
7A	5303269679		Spacer-glass		Appelez-nous	-
7B	5303209512		Glass-heat Barrier				$ 150.41
7C	5303269564		Collar-glass		Appelez-nous	-
8A	5393297187		Handle-door		Appelez-nous	-
