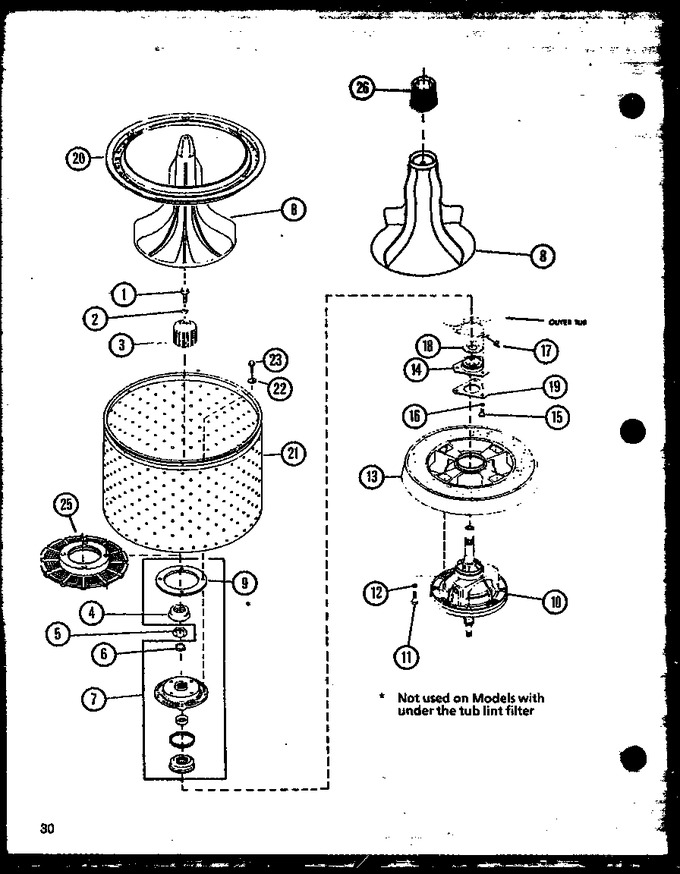

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	34288		Shoulder Screw		Appelez-nous	-
2	34289		O-ring		Appelez-nous	-
3	34504		Drive Bell		Appelez-nous	-
4	34184		Hub And Transmission Tube Seal		Appelez-nous	-
5	Y29220		Locknut		Appelez-nous	-
6	29728		Splined Insert			Immediately	$ 6.95
7	646P3A		Hub & Seal Kit   (Replaces: 495P3)				$ 313.62
8	33174		Agitator				$ 40.04
9	27125		Gasket		Appelez-nous	-
10	33227P		Transmission Assembly   (Replaces: 33227)				$ 907.51
11	27200		Cap Screw		Appelez-nous	-
12	02431		Lockwasher,1/4 Ext Shk		Appelez-nous	-
13	27143		Balance Ring		Appelez-nous	-
14	WP40004201P		Bearing Housing Assembly   (Replaces: 27182)				$ 106.01
15	01355		Screw		Appelez-nous	-
16	02834		Lockwasher,5/16 Ext Sh		Appelez-nous	-
17	27222		Nut,retainer 5/16-18				$ 6.95
18	27187		Flinger				$ 11.91
19	27166		Washer,bearing Housing		Appelez-nous	-
20	32989		Clothes Guard		Appelez-nous	-
21	33294		Washtub, Blue Porcelain		Appelez-nous	-
22	28094		Gasket		Appelez-nous	-
23	WPW10116787		Cap Screw   (Replaces: 27202)				$ 19.26
25	32998		Lint Filter		Appelez-nous	-
26	34155		Fabric Softener Dispenser		Appelez-nous	-
