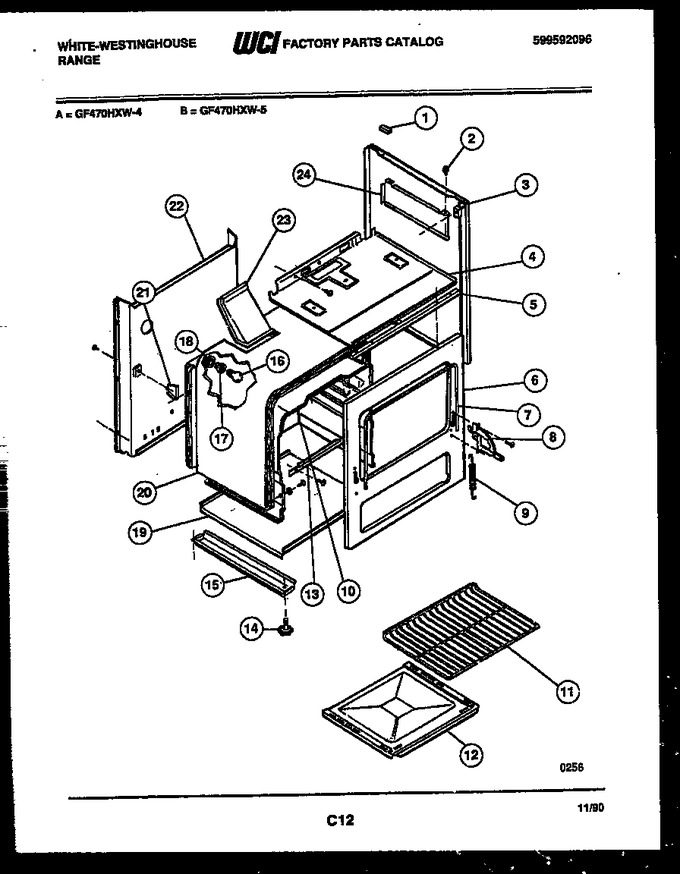

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Burner, Manifold And Gas Control
05 - Body Parts
06 - Broiler Drawer Parts
07 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205587 | Grommet-maintop |
|
- | |||||
| 2 | 3051063 | Grommet Plastic |
|
- | |||||
| 3 | 5303051061 | Bodyside Panel-white |
|
- | |||||
| 4 | 3017174 | Bottom Burner Box |
|
- | |||||
| 5 | 3131811 | Support-control Panel |
|
- | |||||
| 6 | 3205578 | Front - Frame |
|
- | |||||
| 7 | 5308008022 | Seal,oven Door |
|
$ 124.89 | |||||
| 8 | 5303204672 | Hinge Door-lt |
|
- | |||||
| 8 | 5303204670 | Hinge Door-rt |
|
- | |||||
| 9 | 5308008028 | Spring-oven Door |
|
- | |||||
| 10 | 3018710 | Liner - Lt Side |
|
- | |||||
| 10 | 3018712 | Liner-back |
|
- | |||||
| 10 | 3018713 | Liner-top |
|
- | |||||
| 10 | 3018709 | Liner - Rt Side |
|
- | |||||
| 11 | 5303015714 | Rack-oven |
|
- | |||||
| 12 | 3018282 | Liner Bttm |
|
- | |||||
| 13 | 3131038 | Support - Oven Bttm |
|
- | |||||
| 15 | 3051081 | Base-rail |
|
- | |||||
| 16 | 40A15 | Bulb, Oven Light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 18 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 19 | 3011645 | Bottom - Main |
|
- | |||||
| 20 | 3017171 | Insulation - Wrap |
|
- | |||||
| 20 | 3017172 | Insulation - Back |
|
- | |||||
| 21 | 3051096 | Support,oven Rear |
|
- | |||||
| 22 | 5303013340 | Main Back |
|
- | |||||
| 23 | 3017173 | Vent Box |
|
- | |||||
| 24 | 5303131054 | Shield-burner Box Lt |
|
- | |||||
| 24 | 5303131053 | Shield-burner Box Rt |
|
- | |||||
| *16270 | 3934059 | Anti-tip Kits |
|
- | |||||
| *16270 | 3009582 | Clip-b/s (2) |
|
- | |||||
| *16270 | P236366 | Diagram-wiring (not For Purchase) |
|
- |
