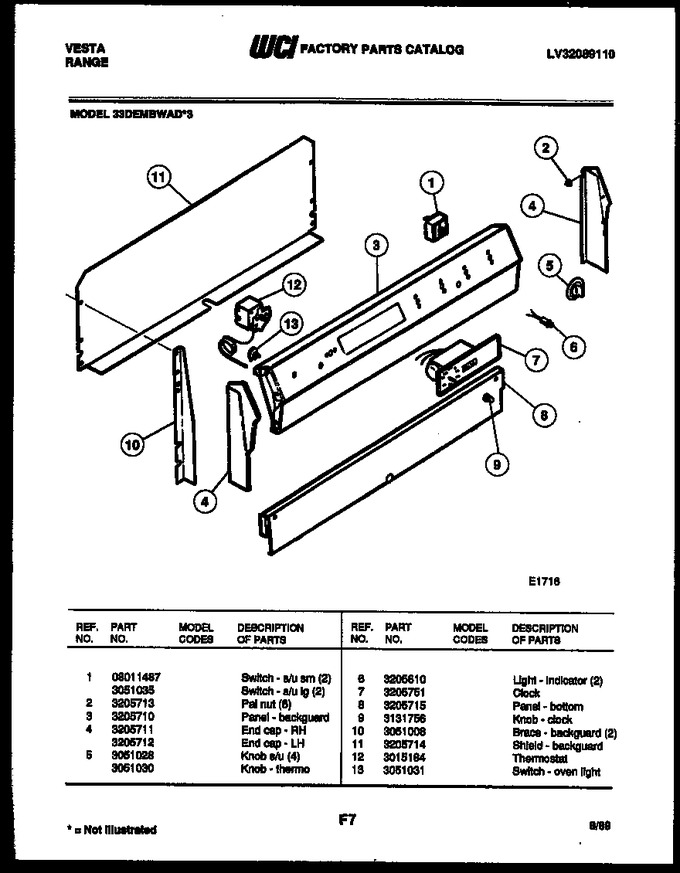

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08011487 | Switch-s/u Sm (2) |
|
- | |||||
| 2 | 3205713 | Pal - Nut (6) |
|
- | |||||
| 3 | 3205710 | Panel - Backguard |
|
- | |||||
| 4 | 3205711 | End Cap - Rh |
|
- | |||||
| 5 | 3051028 | Knob S/u (4) |
|
- | |||||
| 6 | 3205610 | Light - Indicator (2) |
|
- | |||||
| 7 | 3205751 | Clock |
|
- | |||||
| 8 | 3205715 | Panel - Bottom |
|
- | |||||
| 9 | 3131756 | Knob - Clock |
|
- | |||||
| 10 | 3051008 | Brace - Backguard (2) |
|
- | |||||
| 11 | 3205714 | Shield - Backguard |
|
- | |||||
| 12 | 3015184 | Thermostat |
|
- | |||||
| 13 | 3051031 | Switch - Oven Light |
|
- | |||||
| 1A | 3051035 | Switch S/u Lg. (2) |
|
- | |||||
| 4A | 3205712 | End Cap - Lh |
|
- | |||||
| 5A | 3051030 | Knob - Thermo |
|
- |
