02 - Backguard And Cooktop Parts


03 - Door Parts


04 - Broiler Drawer Parts


05 - Burner, Manifold And Gas Control


06 - Body Parts

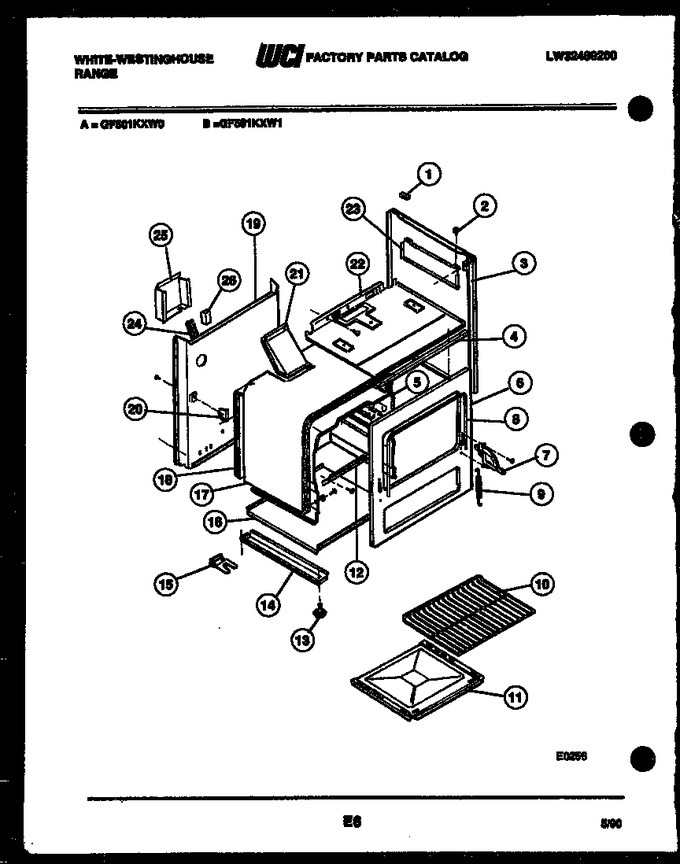

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016129		Grommet Main Top		Appelez-nous	-
2	3051063		Grommet		Appelez-nous	-
3	08014019		Body Side Panel (almond)		Appelez-nous	-
4	3051067		Support Control Panel		Appelez-nous	-
5	3018284		Oven Liner-side Rh		Appelez-nous	-
6	3203621		Front Frame		Appelez-nous	-
7	3204672		Hinge - Door Lh		Appelez-nous	-
8	3051069		Seal - Oven Door		Appelez-nous	-
9	3051079		Spring Hinge Lh/rh		Appelez-nous	-
10	3016158		Rack-oven		Appelez-nous	-
11	3018697		Oven-bottom		Appelez-nous	-
11	3131037		Oven-bottom		Appelez-nous	-
12	3131038		Support-oven Btm		Appelez-nous	-
13	3051080		Leveling Leg		Appelez-nous	-
14	08068047		Rail Base Lh/rh		Appelez-nous	-
15	3131041		Bracket-installation		Appelez-nous	-
16	3131042		Main Bottom		Appelez-nous	-
17	3131043		Insulation-wrap		Appelez-nous	-
18	3131044		Insulation - Back & Top		Appelez-nous	-
19	3131045		Back-main		Appelez-nous	-
20	3051096		Support,oven Rear		Appelez-nous	-
21	3017173		Vent Box		Appelez-nous	-
22	3017573		Burner Box		Appelez-nous	-
23	3131053		Shield Heat B/b Rh		Appelez-nous	-
24	3131049		Channel - Main Back		Appelez-nous	-
25	3131047		Cover-spark Module		Appelez-nous	-
26	3015197		Spark - Module		Appelez-nous	-
23A	3131054		Shield Heat B/b Lh		Appelez-nous	-
23B	3009582		Clip - Backsplash Corner (non-illustrated)		Appelez-nous	-
5A	3018285		Oven Liner-side Lh		Appelez-nous	-
5B	3018700		Oven Liner-top		Appelez-nous	-
5C	3018696		Oven Liner - Back		Appelez-nous	-
7A	3204670		Hinge - Door Rh		Appelez-nous	-
