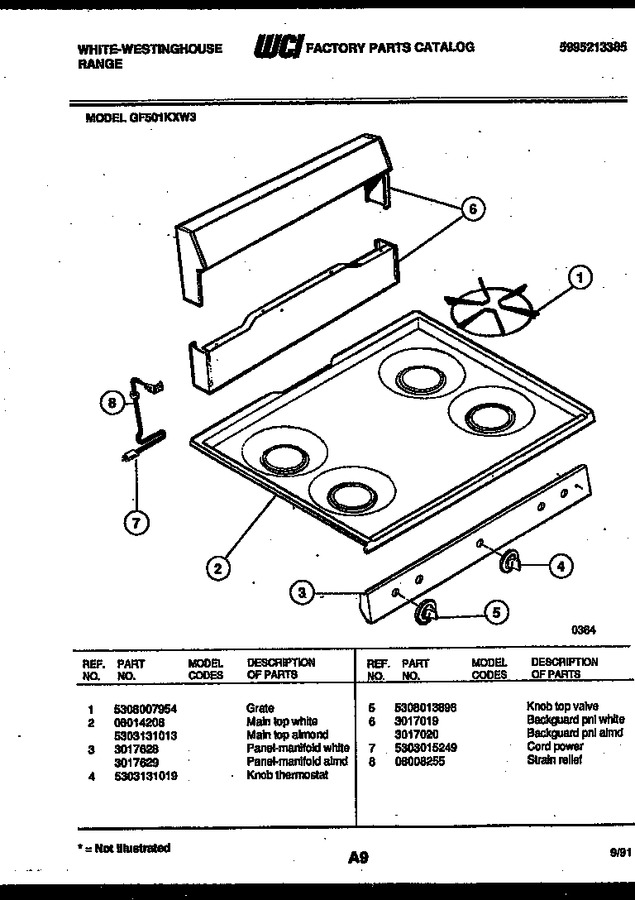

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308007954 | Grate |
|
- | |||||
| 2 | 5303131013 | Main Top Almond |
|
- | |||||
| 3 | 3017629 | Panel-manifold Almd |
|
- | |||||
| 4 | 5303131019 | Knob-thermostat |
|
- | |||||
| 5 | 5308013898 | Knob-top Valve |
|
$ 69.30 | |||||
| 6 | 3017020 | Backguard Pnl Almd |
|
- | |||||
| 7 | 5303015249 | Cord - Power |
|
- | |||||
| 8 | 08008255 | Strain - Relief |
|
- |
