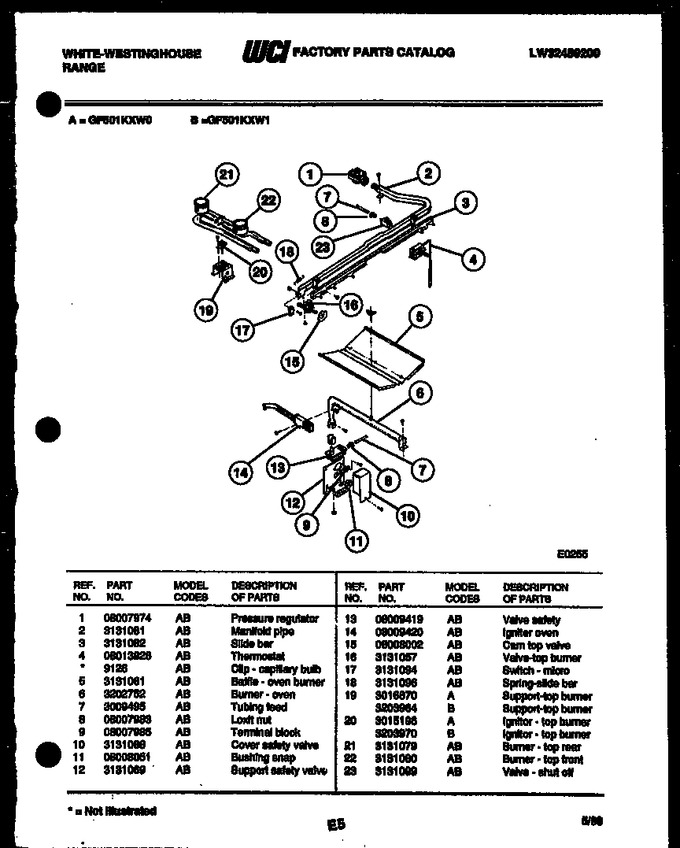

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08007974		Pressure Regulator		Appelez-nous	-
2	3131081		Manifold Pipe		Appelez-nous	-
3	3131082		Slide Bar		Appelez-nous	-
4	08013926		Thermostat		Appelez-nous	-
5	3131061		Baffle-oven Burner		Appelez-nous	-
6	3202752		Burner - Oven		Appelez-nous	-
7	3009495		Tubing - Feed		Appelez-nous	-
8	08007983		Loxit Nut		Appelez-nous	-
9	08007985		Terminal Block		Appelez-nous	-
10	3131088		Cover,safety Valve		Appelez-nous	-
11	08008051		Bushing - Nylon Snap		Appelez-nous	-
12	3131069		Support Safety Valve		Appelez-nous	-
13	08009419		Valve - Safety		Appelez-nous	-
14	12400035		Igniter-oven\   (Replaces: 08009420)			Immediately	$ 60.44
15	08008002		Cam - Top Burner (4)		Appelez-nous	-
16	3131057		Valve - Top Burner		Appelez-nous	-
17	3131094		Switch - Micro		Appelez-nous	-
18	3131096		Spring - Slide Bar		Appelez-nous	-
19	3203964		Support - Top Burner		Appelez-nous	-
20	3203970		Ignitor-top Burner		Appelez-nous	-
21	3131079		Burner - Top Rear		Appelez-nous	-
22	3131080		Burner - Top Front		Appelez-nous	-
23	3131099		Valve - Shut Off		Appelez-nous	-
4A	9126		Clip - Capillary Bulb (non-illustrated)				$ 24.99
