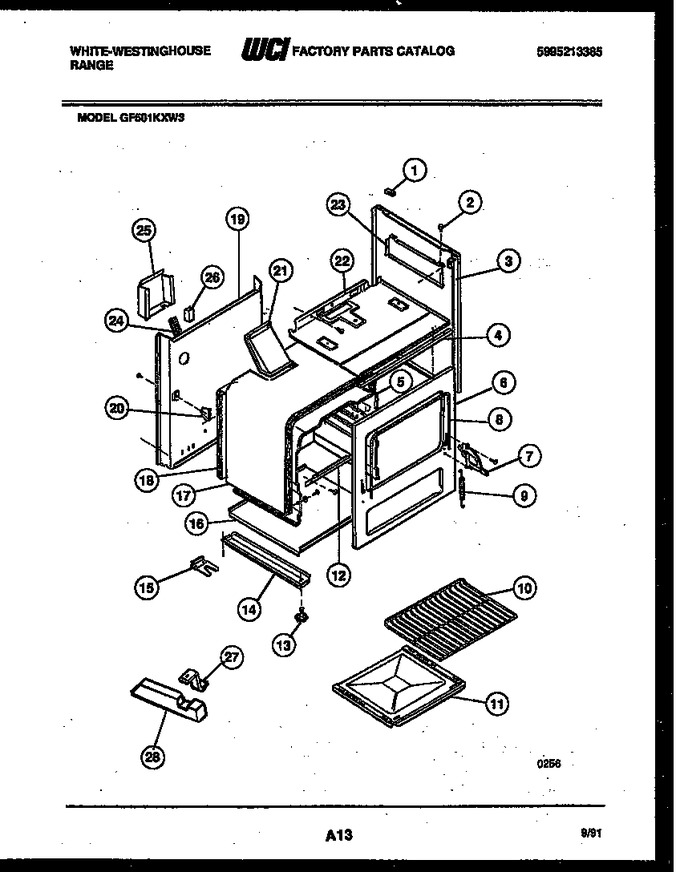

02 - Backguard And Cooktop Parts


03 - Door Parts


04 - Broiler Drawer Parts


05 - Burner, Manifold And Gas Control


06 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3205587		Grommet-maintop		Appelez-nous	-
2	3051063		Grommet		Appelez-nous	-
3	5303051061		Bodyside - White Lh/rh		Appelez-nous	-
4	3051067		Support Control Panel		Appelez-nous	-
5	3018285		Oven Liner-side Lh		Appelez-nous	-
5	3018699		Oven Liner-back		Appelez-nous	-
5	3018284		Oven Liner-side Rh		Appelez-nous	-
5	3018700		Oven Liner-top		Appelez-nous	-
6	3203621		Front Frame		Appelez-nous	-
7	5303204672		Hinge-door Lh		Appelez-nous	-
8	5303051069		Seal Oven Door		Appelez-nous	-
9	5303051079		Spring Hinge Lh/rh		Appelez-nous	-
10	3016158		Rack-oven		Appelez-nous	-
11	3018697		Oven-bottom		Appelez-nous	-
12	3131038		Support-oven Btm		Appelez-nous	-
13	318175510		Leveling Leg   (Replaces: 5303210257)			Immediately	$ 24.26
14	08068047		Rail Base Lh/rh		Appelez-nous	-
15	3934059		Bracket Installation		Appelez-nous	-
16	3131042		Main Bottom		Appelez-nous	-
17	3131043		Insulation-wrap		Appelez-nous	-
18	3131044		Insulation - Back & Top		Appelez-nous	-
19	5303212609		Back-main		Appelez-nous	-
20	3051096		Support,oven Rear		Appelez-nous	-
21	3017173		Vent Box		Appelez-nous	-
22	3017573		Burner Box		Appelez-nous	-
23	5303131053		Shield-heat B/b Rh		Appelez-nous	-
24	3131046		Channel Main Back		Appelez-nous	-
25	3131047		Cover-spark Module		Appelez-nous	-
26	5303209931		Spark Module		Appelez-nous	-
27	5303210892		Retainer - Weight		Appelez-nous	-
28	5303210891		Cement - Weight		Appelez-nous	-
*52489	19100180271		Diagram - Wiring (not For Purchase)		Appelez-nous	-
14A	5303210255		Base Rail-rt		Appelez-nous	-
14B	5303210256		Base Rail-lt		Appelez-nous	-
23A	5303131054		Shield-heat B/b Lh		Appelez-nous	-
23B	3131791		Clip - Back Splash Corner (non-illustrated)				$ 19.01
7A	5303204670		Hinge-door Rh		Appelez-nous	-
