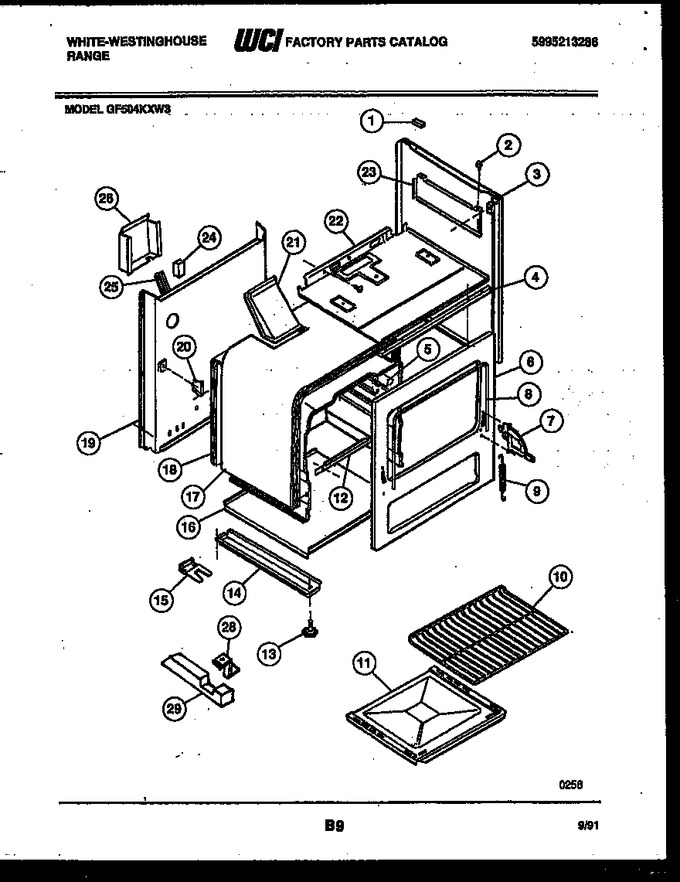

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3205587		Grommet-maintop		Appelez-nous	-
2	3051063		Grommet		Appelez-nous	-
3	5303051061		Bodyside L & R White		Appelez-nous	-
4	3016950		Support-control Pnl		Appelez-nous	-
5	3018284		Oven Liner-rh		Appelez-nous	-
6	3203612		Front Frame		Appelez-nous	-
8	5308013916		Seal-oven Door		Appelez-nous	-
9	5303051079		Spring-hinge L&r (2)		Appelez-nous	-
10	5303016128		Rack-oven (2)		Appelez-nous	-
11	3018815		Oven Bottom		Appelez-nous	-
12	3131038		Support-oven Btm		Appelez-nous	-
13	318175510		Leveling Leg   (Replaces: 5303210257)			Immediately	$ 24.26
14	5303210255		Rail-base Right		Appelez-nous	-
15	3934059		Bracket Installation		Appelez-nous	-
16	3017448		Main Bottom		Appelez-nous	-
17	3203740		Insul Wrap		Appelez-nous	-
18	3203741		Insul Back & Top		Appelez-nous	-
19	5303271410		Back-main		Appelez-nous	-
20	3051096		Support,oven Rear		Appelez-nous	-
21	3017173		Vent Box		Appelez-nous	-
22	3202742		Burner Box		Appelez-nous	-
23	5303131053		Shield-heat B/b Rh		Appelez-nous	-
24	5303209931		Spark Module		Appelez-nous	-
25	3131046		Channel Main Back		Appelez-nous	-
26	3131047		Cover-spark Module		Appelez-nous	-
28	5303210892		Retainer - Weight		Appelez-nous	-
29	5303210891		Weight		Appelez-nous	-
*54059	19100180271		Diagram - Wiring (not For Purchase)		Appelez-nous	-
14A	5303210256		Rail-base Left		Appelez-nous	-
23A	5303131054		Shield-heat B/b Lh		Appelez-nous	-
23B	3131791		Clip B/s Corner (non-illustrated)				$ 19.01
5A	3018285		Oven Liner-lh		Appelez-nous	-
5B	3018818		Oven Liner Top		Appelez-nous	-
5C	3018817		Oven Liner Back		Appelez-nous	-
6A	5303204672		Hinge-door Lh		Appelez-nous	-
6B	5303204670		Hinge-door Rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
