View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

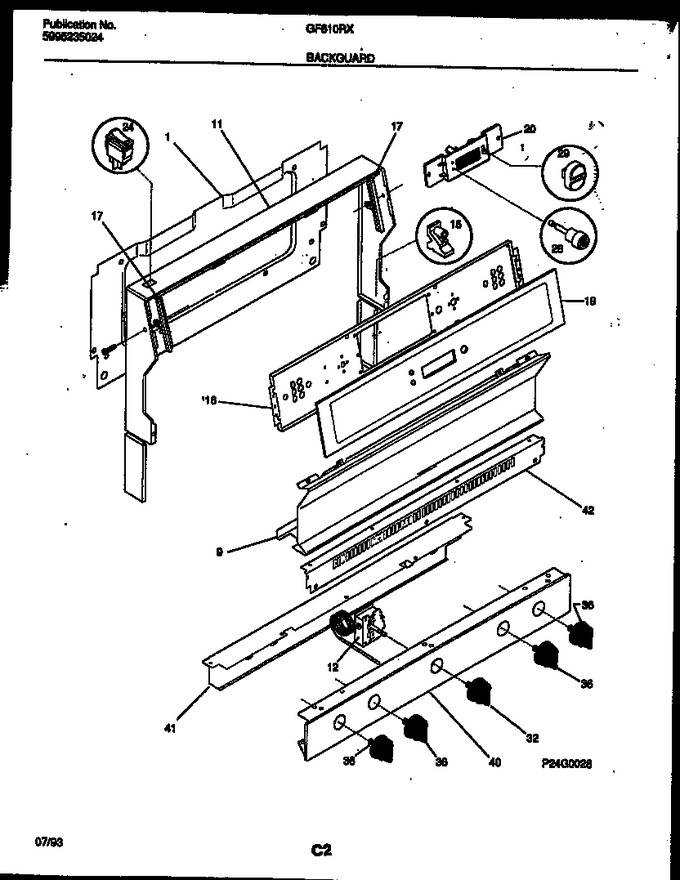

02 - Backguard
03 - Burner, Manifold And Gas Control
04 - Body Parts
05 - Cooktop And Broiler Drawer Parts
06 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316028703 | Shield-backguard, Rear Wall |
|
- | |||||
| 9 | 316012501 | Trim-splasher, White |
|
- | |||||
| 11 | 3206432 | Trim-wrapper |
|
- | |||||
| 12 | 316032411 | Thermostat-oven (Replaces: 5303271464) |
|
Immediately | $ 165.14 | ||||
| 15 | 5303131237 | Support-backguard,(2) |
|
- | |||||
| 16 | 5303274090 | Plate, Instrument Mtg |
|
- | |||||
| 17 | 3131240 | Trim-glass Retainer, (2) |
|
- | |||||
| 19 | 316045800 | Panel-control, Glass |
|
- | |||||
| 20 | 5303272309 | Clock/timer, Electronic |
|
- | |||||
| 24 | 5303208662 | Switch-oven Light, Rocker |
|
- | |||||
| 28 | 5303272306 | Push Button, Clock Set, Black |
|
- | |||||
| 29 | 5303272305 | Button-selector, Clock/timer, Black |
|
$ 38.80 | |||||
| 32 | 5303212899 | Knob - Thermostat |
|
- | |||||
| 36 | 5303212749 | Knob-top Valve, (4) |
|
- | |||||
| 40 | 5303211153 | Panel-manifold |
|
- | |||||
| 41 | 3203443 | Cover-manifold |
|
- | |||||
| 42 | 3131241 | Trim-vent |
|
- |
