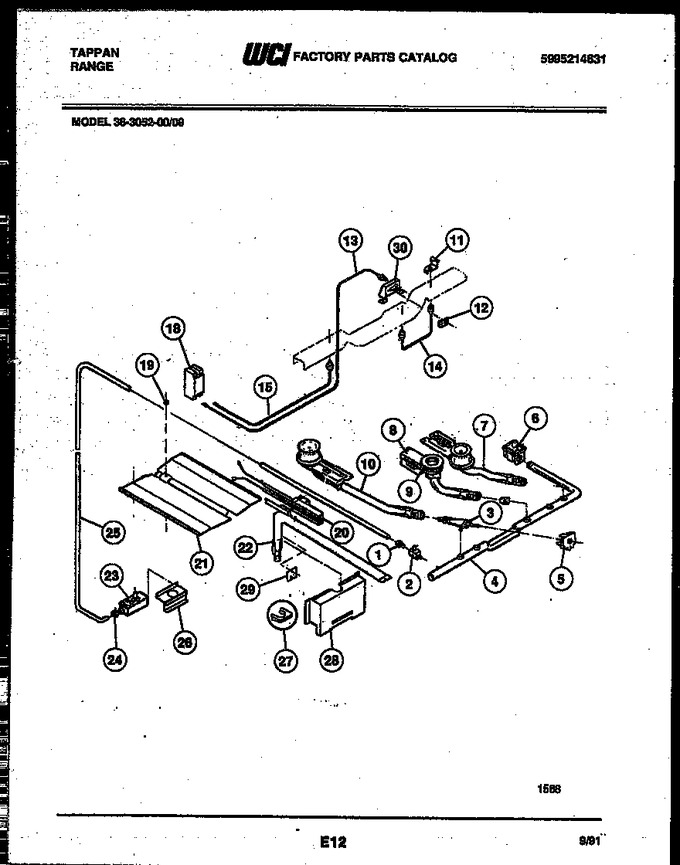

08 - Burner, Manifold And Gas Control


09 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	247T079P01		Loxit Nut - Shut Off & Safety Valve		Appelez-nous	-
2	774T121P01		Valve, Shut Off		Appelez-nous	-
3	5303208062		Valve Top Burner-3 Pos- & Griddle		Appelez-nous	-
4	439T053P02		Manifold Pipe		Appelez-nous	-
5	5303131580		Switch-igniter		Appelez-nous	-
6	5303016997		Control-regulator		Appelez-nous	-
7	5303204154		Burner-top Front		Appelez-nous	-
8	750T141S05		Brnr-top Griddle Compl.		Appelez-nous	-
9	5300007473		Burner-head-griddle Burner Ring		Appelez-nous	-
10	5303204455		Burner-top Rear		Appelez-nous	-
11	3016993		Retainer - Top Igniter Harness & Assembly		Appelez-nous	-
12	5303281925		Retainer-igniter		Appelez-nous	-
13	5303207566		Base-igniter-rh		Appelez-nous	-
14	5303206944		Base-igniter-griddle		Appelez-nous	-
15	5303206942		Base-igniter-lh		Appelez-nous	-
18	5303200669		Spark Module		Appelez-nous	-
19	154079601		Nut Burner Baffle   (Replaces: 5303013272)				$ 0.41
20	5303207520		Igniter-oven Burner		Appelez-nous	-
21	5303131517		Baffle-oven Bottom		Appelez-nous	-
22	5303208304		Burner-oven		Appelez-nous	-
23	5303912679		Valve Safety				$ 231.68
24	247T079P01		Loxit Fitting		Appelez-nous	-
25	750T095P12		Tube, Oven Supply		Appelez-nous	-
26	072T655F01		Bracket, Thermostat		Appelez-nous	-
27	241T017P216		Fstnr-ov & Safety Valve		Appelez-nous	-
28	174T300F01		Cover, Safety Valve		Appelez-nous	-
29	709T041P01		Terminal, Block		Appelez-nous	-
30	072T781F01		Bracket-igniter		Appelez-nous	-
29A	008T276F05-18		Angle-manifold Pipe Support		Appelez-nous	-
29B	3131535		Plate - Burner Mtg (non-illustrated)		Appelez-nous	-
