02 - Backguard


03 - Cooktop Parts


04 - Door Parts


05 - Broiler Drawer Parts


06 - Burner, Manifold And Gas Control


07 - Body Parts

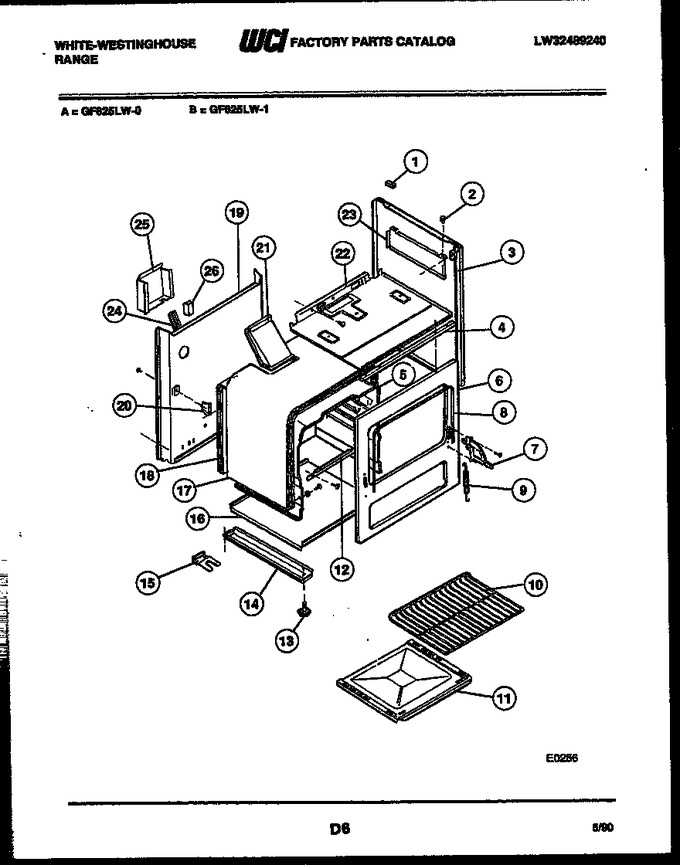

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303016129		Grommet Main Top		Appelez-nous	-
2	3051063		Grommet		Appelez-nous	-
3	5303051061		Backsplash - White Lh/rh		Appelez-nous	-
4	3131811		Support-control Panel		Appelez-nous	-
5	3131032		Oven Liner-side Rh		Appelez-nous	-
6	5303207299		Front-frame		Appelez-nous	-
7	5303204672		Hinge-door Lh		Appelez-nous	-
8	5308008022		Seal,oven Door				$ 124.89
9	5303009435		Spring - Hinge Lh/rh (2)		Appelez-nous	-
10	5303015714		Rack Oven (2)		Appelez-nous	-
11	3017168		Oven-bottom		Appelez-nous	-
12	3131038		Support-oven Btm		Appelez-nous	-
13	5303051080		Leveling Leg		Appelez-nous	-
14	5308068047		Rail Base Lh/rh (2)		Appelez-nous	-
15	3131041		Bracket-installation		Appelez-nous	-
16	3011645		Main Bottom		Appelez-nous	-
17	3017171		Insulation - Wrap		Appelez-nous	-
18	3017172		Insulation-back & Top		Appelez-nous	-
19	5303013340		Back-main		Appelez-nous	-
20	3051096		Support,oven Rear		Appelez-nous	-
21	3017173		Vent Box		Appelez-nous	-
22	3017174		Burner-box		Appelez-nous	-
23	5303131053		Shield-heat B/b Rh		Appelez-nous	-
24	3131046		Channel Main Back		Appelez-nous	-
25	08013953		Cover-spark Module		Appelez-nous	-
26	5303200669		Spark Module		Appelez-nous	-
23A	5303131054		Shield-heat B/b Lh		Appelez-nous	-
23B	3131791		Clip Backsplash Corner				$ 19.01
5A	3131033		Oven Liner-side Lh		Appelez-nous	-
5B	3017166		Oven Liner-top		Appelez-nous	-
5C	3017167		Oven Liner-back		Appelez-nous	-
7A	5303204670		Hinge-door Rh		Appelez-nous	-
