01 - Range, Gas
02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

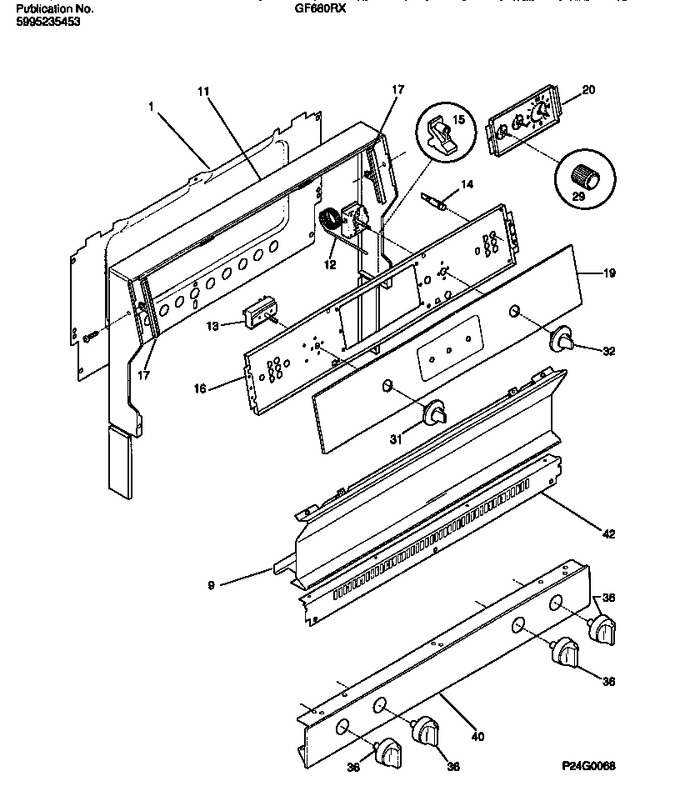

| 1 | 316028703 | Shield-backguard, Rear Wall |
|
- | |||||
| 9 | 316012502 | Trim-splasher, Almond |
|
- | |||||
| 11 | 3206461 | Trim-wrapper |
|
- | |||||
| 12 | 5303271746 | Thermostat-oven |
|
$ 414.28 | |||||
| 13 | 53032126 | Switch-selector |
|
- | |||||
| 14 | 5308037896 | Indicator Light |
|
$ 39.75 | |||||
| 15 | 5303131237 | Support-backguard,(2) |
|
- | |||||
| 16 | 5303274090 | Plate, Instrument Mtg |
|
- | |||||
| 17 | 3131240 | Trim-glass Retainer, (2) |
|
- | |||||
| 19 | 5303212754 | Panel-control, Glass |
|
- | |||||
| 20 | 5303212752 | Clock/timer, Analog 3 Stem |
|
- | |||||
| 29 | 5303212756 | Knob-clock |
|
- | |||||
| 31 | 5303212757 | Knob-selector |
|
- | |||||
| 32 | 5303212758 | Knob-thermostat |
|
- | |||||
| 36 | 5303212749 | Knob-top Valve, (4) |
|
- | |||||
| 40 | 5303212750 | Panel-manifold |
|
- | |||||
| 42 | 3131241 | Trim-vent |
|
- | |||||
| *52760 | 3204745 | Bushing-ctrl Shaft |
|
- | |||||
| *52761 | 5303272555 | Clip-backguard |
|
- | |||||
| 14A | 3201728 | Light/lamp, Indicator, Red, Lock, 125, Lock, (non-illustrated) |
|
- |
