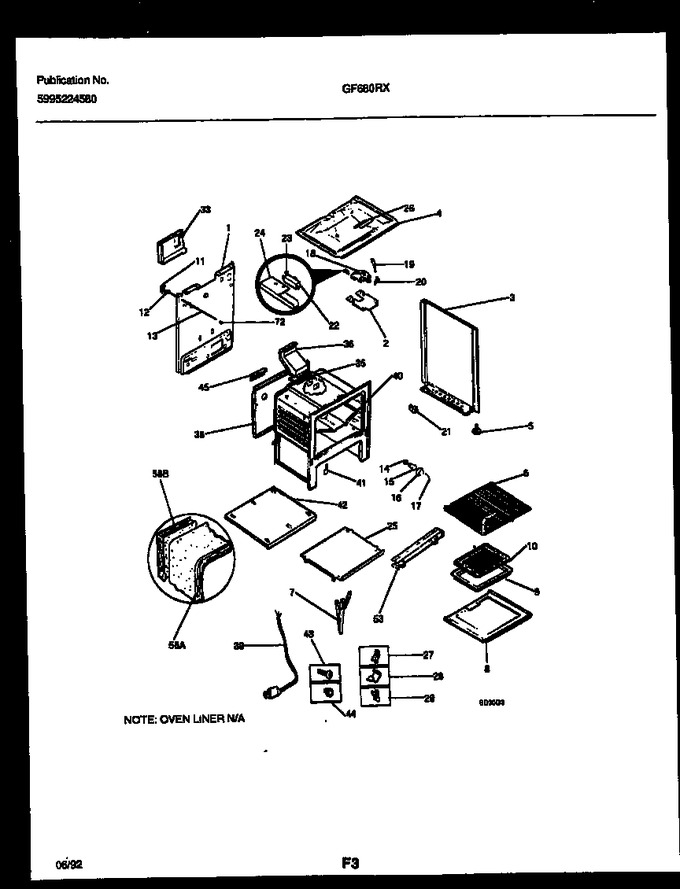

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | 5303281625 | Rack Oven |
|
- | |||||
| 7 | 316007001 | Hinge-oven Door |
|
$ 234.55 | |||||
| 10 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 18 | 5303015453 | Latch-door |
|
$ 172.04 | |||||
| 28 | 3011813 | Clip-wire |
|
$ 14.79 | |||||
| 29 | 3051162 | Glide-utility Drwr |
|
Immediately | $ 8.22 | ||||
| 33 | 5303285182 | Shield Rear Wall |
|
- | |||||
| 35 | 08067965 | Gasket-flue |
|
- | |||||
| 36 | 3131931 | Flue |
|
- | |||||
| 38 | 5303285181 | Shield-heat |
|
- | |||||
| 39 | 5304534377 | Cord, Power (Replaces: 3202006) |
|
$ 26.85 | |||||
| 40 | 3200836 | Shield-heat Baffle |
|
- | |||||
| 41 | 3131570 | Cover Hinge Cutout |
|
$ 7.35 | |||||
| 42 | 5303270104 | Shield-bake-burner |
|
- | |||||
| 43 | 316282700 | Screw-oven Bottom, 8-18 X 1-7/16 (Replaces: 3131732) |
|
$ 9.93 | |||||
| 44 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 45 | 08068018 | Shield-wire |
|
- | |||||
| 53 | 5303271047 | Shield-main Front |
|
- | |||||
| 72 | 5303285692 | Cover-light Rod |
|
- | |||||
| 39A | 08067961 | Fastener-power Cord |
|
- | |||||
| 3E | 08067992 | Shield, Wool (non-illustrated) |
|
- | |||||
| 53A | 08067973 | Insulation-main Frnt (non-illustrated) |
|
$ 51.74 | |||||
| 58A | 3200833 | Insulation-wrapper |
|
- | |||||
| 58B | 3204582 | Insulation, Oven Back |
|
- | |||||
| 58C | 3131304 | Insulation-oven-top (non-illustrated) |
|
- |
