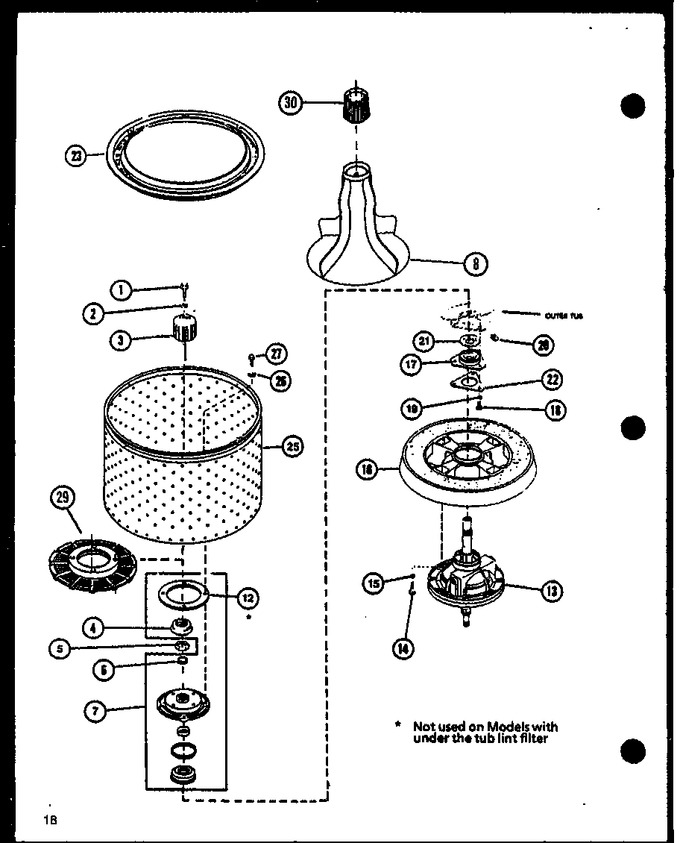

SELECT A DIAGRAM
01 - Page 7
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 34288 | Shoulder Screw |
|
- | |||||
| 2 | 34289 | O-ring |
|
- | |||||
| 3 | 34504 | Drive Bell |
|
- | |||||
| 4 | 34184 | Hub And Transmission Tube Seal |
|
- | |||||
| 5 | Y29220 | Locknut |
|
- | |||||
| 6 | 29728 | Splined Insert |
|
Immediately | $ 6.95 | ||||
| 7 | 646P3A | Hub & Seal Kit (Replaces: 495P3) |
|
$ 313.62 | |||||
| 8 | 33174 | Agitator |
|
$ 40.04 | |||||
| 12 | 27125 | Gasket |
|
- | |||||
| 13 | 33227P | Transmission Assembly (Replaces: 33227) |
|
$ 907.51 | |||||
| 14 | 27200 | Cap Screw |
|
- | |||||
| 15 | 27016 | Washer |
|
- | |||||
| 16 | 27143 | Balance Ring |
|
- | |||||
| 17 | WP40004201P | Bearing Housing Assembly (Replaces: 27182) |
|
$ 106.01 | |||||
| 18 | 01355 | Screw |
|
- | |||||
| 19 | 02834 | Lockwasher,5/16 Ext Sh |
|
- | |||||
| 20 | 27222 | Nut,retainer 5/16-18 |
|
$ 6.95 | |||||
| 21 | 27187 | Flinger |
|
$ 11.91 | |||||
| 22 | 27166 | Washer,bearing Housing |
|
- | |||||
| 23 | 32989 | Clothes Guard |
|
- | |||||
| 25 | 33245 | Washtub, Stainless Steel |
|
- | |||||
| 26 | 28094 | Gasket |
|
- | |||||
| 27 | WPW10116787 | Cap Screw (Replaces: 27202) |
|
$ 19.26 | |||||
| 29 | 32998 | Lint Filter |
|
- | |||||
| 30 | 34155 | Fabric Softener Dispenser |
|
- |
