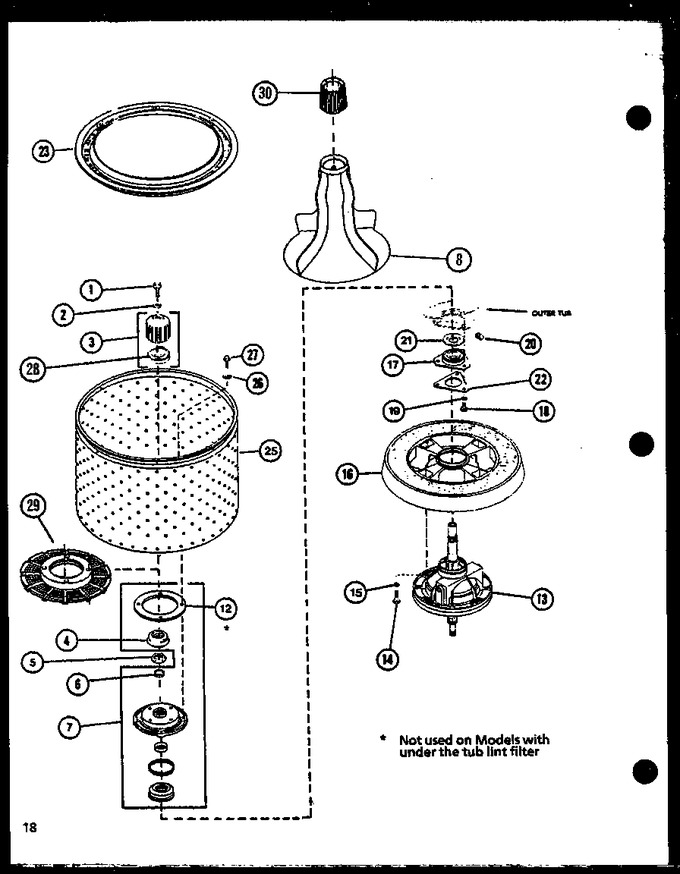

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R0600092		Screw		Appelez-nous	-
2	R0600554		``o`` Ring Washer		Appelez-nous	-
3	39508P		Kit, Drive Bell And Seal   (Replaces: R0603552)			Immediately	$ 45.90
4	39508P		Low Post Seal Assy   (Replaces: R0603553)			Immediately	$ 45.90
5	R0601034		Locknut		Appelez-nous	-
6	R0605674		Spline Insert		Appelez-nous	-
7	646P3A		Hub & Seal Assy   (Replaces: R0605723)				$ 313.62
8	R0603624		Agitator		Appelez-nous	-
12	R0604505		Gasket		Appelez-nous	-
13	33227P		Transmission Assy   (Replaces: R0607505)				$ 907.51
14	R0600022		Screw		Appelez-nous	-
15	R0600520		Lockwasher		Appelez-nous	-
16	R0610012		Assy,balance Ring-compl		Appelez-nous	-
17	WP40004201P		Main Bearing Assembly   (Replaces: R0610011)				$ 106.01
18	R0600021		Screw		Appelez-nous	-
19	R0600519		Lockwasher		Appelez-nous	-
20	R0601013		Nut		Appelez-nous	-
21	R0605536		Flinger		Appelez-nous	-
22	R0600518		Washer		Appelez-nous	-
23	R0603611		Guard, Clothes		Appelez-nous	-
25	R0603211		Wash Tub		Appelez-nous	-
26	R0604504		Gasket		Appelez-nous	-
27	WP3400527		Screw   (Replaces: R0600019)				$ 6.77
28	R0603509		Kit, Drive Bell And Seal		Appelez-nous	-
29	R0610072		Filter/lint Self-clean		Appelez-nous	-
30	R0603625		Dispenser, Fabric Softner		Appelez-nous	-
