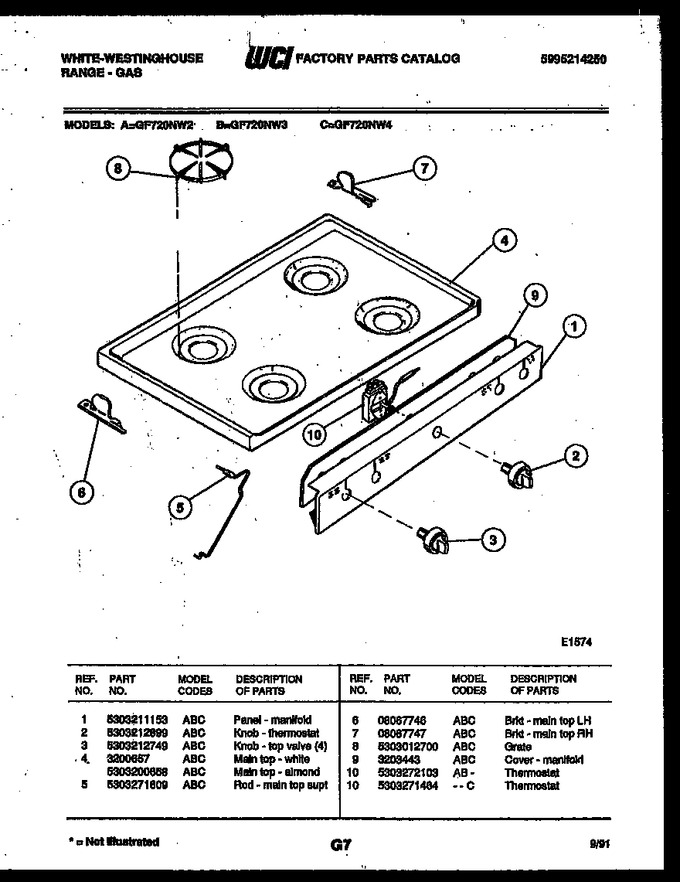

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303211153 | Panel-manifold |
|
- | |||||
| 2 | 5303212899 | Knob - Thermostat |
|
- | |||||
| 3 | 5303212749 | Knob-top Valve, (4) |
|
- | |||||
| 4 | 5303200658 | Main Top, Almond |
|
- | |||||
| 5 | 5303271609 | Rod - Maintop Supt |
|
- | |||||
| 6 | 08067746 | Brkt, Main Top (lh) |
|
- | |||||
| 7 | 08067747 | Brkt, Main Top (rh) |
|
- | |||||
| 8 | 5303012700 | Grate |
|
- | |||||
| 9 | 3203443 | Cover-manifold |
|
- | |||||
| 10 | 5303272103 | Thermostat |
|
- |
