SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Drawer Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:

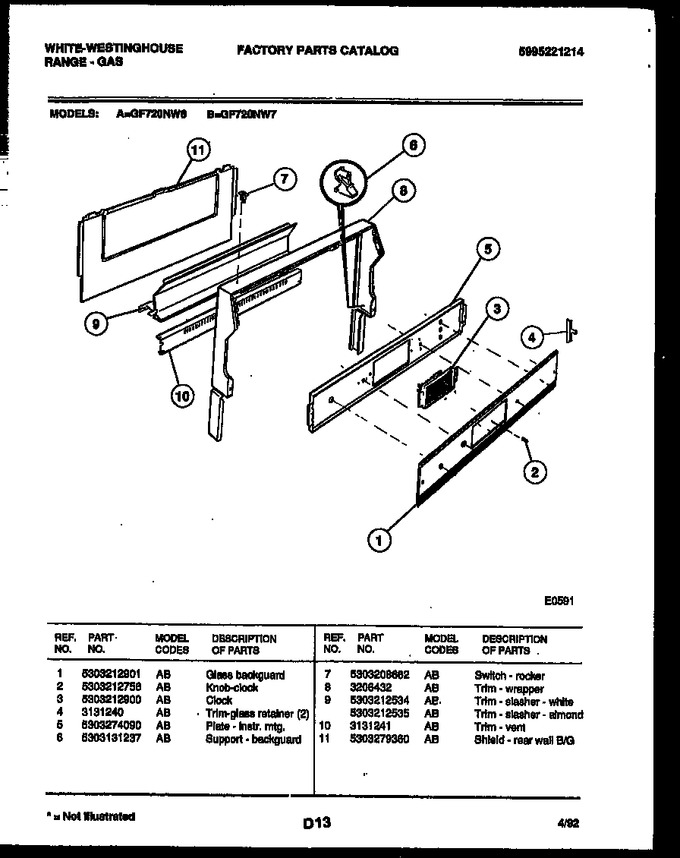

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303212901 | Glass Backguard |
|
- | |||||
| 2 | 5303212756 | Knob-clock |
|
- | |||||
| 3 | 5303212900 | Clock |
|
- | |||||
| 4 | 3131240 | Trim-glass Retainer, (2) |
|
- | |||||
| 5 | 5303274090 | Plate-instr Mtg |
|
- | |||||
| 6 | 5303131237 | Support, Backguard |
|
- | |||||
| 7 | 5303208662 | Switch-rocker |
|
- | |||||
| 8 | 3206432 | Trim-wrapper |
|
- | |||||
| 9 | 5303212535 | Trim - Slasher - Almond |
|
- | |||||
| 10 | 3131241 | Trim-vent |
|
- | |||||
| 11 | 5303279360 | Shield-rear Wall B/g |
|
- |
