SELECT A DIAGRAM
01 - Body

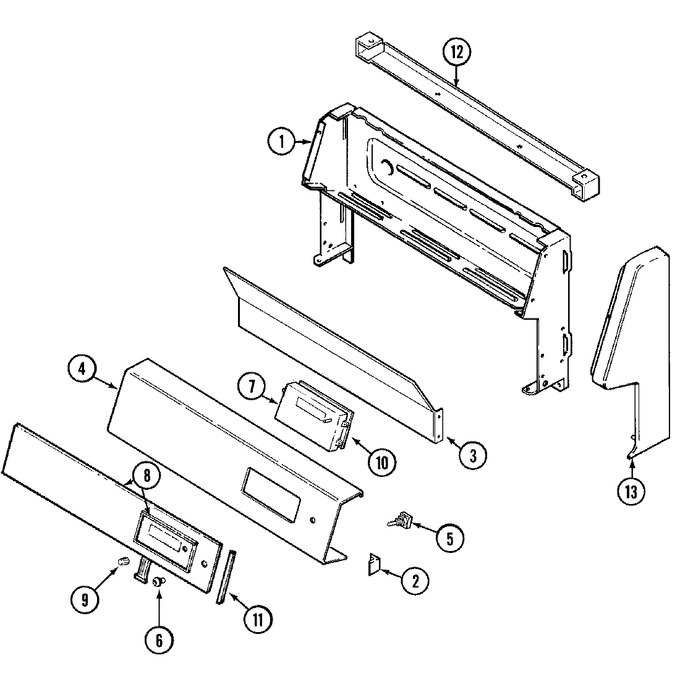

02 - Control Panel
03 - Door/drawer (3468xrx)
04 - Gas Controls
05 - Oven
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4001F097-51 | Housing, Control Panel | 01 |
|
- | ||||
| 1 | 8036P003-60 | Shield, Sight | 01 |
|
- | ||||
| 2 | WP59002061 | Screw, Switch (Replaces: 7101P148-60) | 01 |
|
$ 6.98 | ||||
| 2 | 8010P083-60 | Spacer | 01 |
|
- | ||||
| 3 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 3 | 3604F188-09 | Shield, Flue | 01 |
|
- | ||||
| 4 | 7703P500-60 | Panel, Bkgd (wg) | 01 |
|
- | ||||
| 4 | 7703P529-60 | Panel, Control (blk) | 14 |
|
- | ||||
| 4 | 7703P529-60 | Panel, Control (blk) | 09 |
|
- | ||||
| 4 | 7703P253-60 | Panel, Control (blk) | 11 |
|
- | ||||
| 4 | 7703P253-60 | Panel, Control (blk) | 01 |
|
- | ||||
| 4 | WPY706189 | Screw (Replaces: 7118P019-60) | 01 |
|
Immediately | $ 6.47 | |||
| 5 | 7403P109-60 | Switch, Push (blk) | 01 |
|
- | ||||
| 6 | 7214P007-60 | Sleeve, Switch (blk) | 01 |
|
- | ||||
| 7 | 7601P169-60 | Clock | 11 |
|
- | ||||
| 7 | 7601P208-60CP | Clock (Replaces: 7601P208-60) | 14 |
|
- | ||||
| 7 | 7601P169-60 | Clock | 01 |
|
- | ||||
| 7 | 7601P208-60CP | Clock (Replaces: 7601P208-60) | 09 |
|
- | ||||
| 8 | 4851S019-59 | Panel, Control Assy | 14 |
|
- | ||||
| 8 | 4851S017-59 | Panel, Control Assy | 01 |
|
- | ||||
| 8 | 4851S017-59 | Panel, Control Assy | 11 |
|
- | ||||
| 8 | 4851S019-59 | Panel, Control Assy | 09 |
|
- | ||||
| 9 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 01 |
|
$ 12.13 | ||||
| 10 | W10124350 | Not Required Part Or See Note Relay, Clock | 14 |
|
- | ||||
| 10 | 7428P012-60 | Relay | 01 |
|
- | ||||
| 10 | 7428P012-60 | Relay | 11 |
|
- | ||||
| 10 | W10124350 | Not Required Part Or See Note Relay, Clock | 09 |
|
- | ||||
| 11 | 8004P020-60 | Support, Relay Board | 01 |
|
- | ||||
| 12 | 7720P156-60 | Trim, Retainer | 01 |
|
- | ||||
| 13 | 4001F064-51 | Extension, Control Panel | 01 |
|
- | ||||
| 14 | W10124350 | Not Required Part Or See Note Harness, Control To Relay | 09 |
|
- | ||||
| 14 | 7726P046-60 | End Cap (rt-blk) | 01 |
|
- | ||||
| 14 | 7726P050-60 | End Cap (lt-blk) | 01 |
|
- | ||||
| 14 | 5170P124-60 | Harness Ctrl To Relay | 01 |
|
- | ||||
| 15 | W10124350 | Not Required Part Or See Note Harness, Control To Relay | 14 |
|
- | ||||
| 15 | 5170P124-60 | Harness Ctrl To Relay | 11 |
|
- | ||||
| 16 | 5170P160-60 | Harness, Sensor & Lock | 09 |
|
- | ||||
| 16 | 5170P123-60 | Harness Sensor | 01 |
|
- | ||||
| 16 | 5170P160-60 | Harness, Sensor & Lock | 14 |
|
- | ||||
| 16 | 5170P123-60 | Harness Sensor | 11 |
|
- | ||||
| 17 | 5180D142-60 | Harness, Wire Clock | 01 |
|
- | ||||
| 17 | 5180D152-60 | Harness, Control Panel | 14 |
|
- | ||||
| 17 | 5180D152-60 | Harness, Control Panel | 09 |
|
- | ||||
| 17 | 5180D142-60 | Harness, Wire Clock | 11 |
|
- | ||||
| 18 | 5125A354-60 | Wires, Loose | 14 |
|
- | ||||
| 18 | 5125A320-60 | Wires, Loose | 01 |
|
- | ||||
| 18 | 5125A320-60 | Wires, Loose | 11 |
|
- | ||||
| 18 | 5125A354-60 | Wires, Loose | 09 |
|
- |
