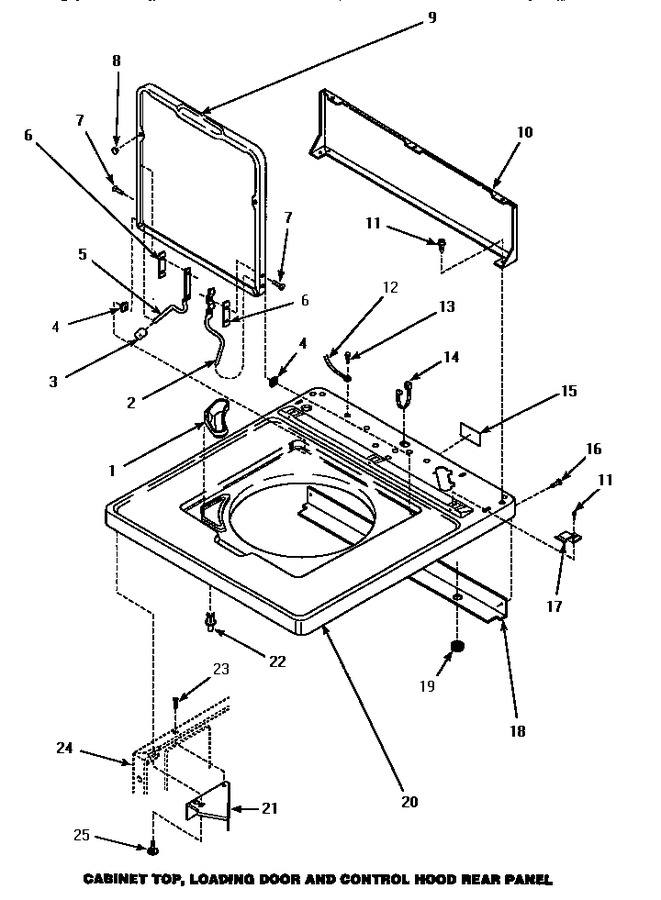

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	34776		Dispenser,bleach				$ 14.04
2	DE81-10050A		Hinge, Lid R   (Replaces: 36437)				$ 33.80
3	35112		Bumper,hinge-stop		Appelez-nous	-
4	33446		Bushing			Immediately	$ 6.95
5	DE81-08298A		Hinge, Lid-left   (Replaces: 36439)				$ 96.80
6	34338		Gasket,hinge				$ 9.22
7	WPW10119828		Screw   (Replaces: 34337)			Immediately	$ 6.47
8	21685		Bumper			Immediately	$ 6.95
9	36018HP		Loading Door, Harvest Gold		Appelez-nous	-
9	36018WP		Assy,lid-amana Electronic		Appelez-nous	-
9	36018LP		Assy,lid-amana Electronic		Appelez-nous	-
10	34903		Panel, Back Hood (use 37782)		Appelez-nous	-
11	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
12	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
13	Sub. To D513139P		Screw,10b-16 X 1/2 Hex   (Replaces: 52909)		Appelez-nous	-
14	21903		Strain Relief		Appelez-nous	-
15	24903		Sticker,disconnect Pow		Appelez-nous	-
16	WP27001200		Screw   (Replaces: 27196)				$ 6.91
17	35887		Hold-down Clip		Appelez-nous	-
18	34228		Shield, Top		Appelez-nous	-
19	80262		Grommet				$ 1.58
20	34902LP		Assy,top-amana		Appelez-nous	-
20	34902WP		Assy,top-amana		Appelez-nous	-
20	34902HP		Assy,top-domestic W/bleach		Appelez-nous	-
21	36034		Bracket,director-module		Appelez-nous	-
22	56534		Barrel,support		Appelez-nous	-
23	DE81-05207A		Screw,8-18x3/8 Phil Flt Hd   (Replaces: 36035)				$ 67.62
24	Y00000000		See Note Cabinet		Appelez-nous	-
25	WP27001200		Screw,10-24t X 3/4 Sem   (Replaces: Y31644)				$ 6.91
