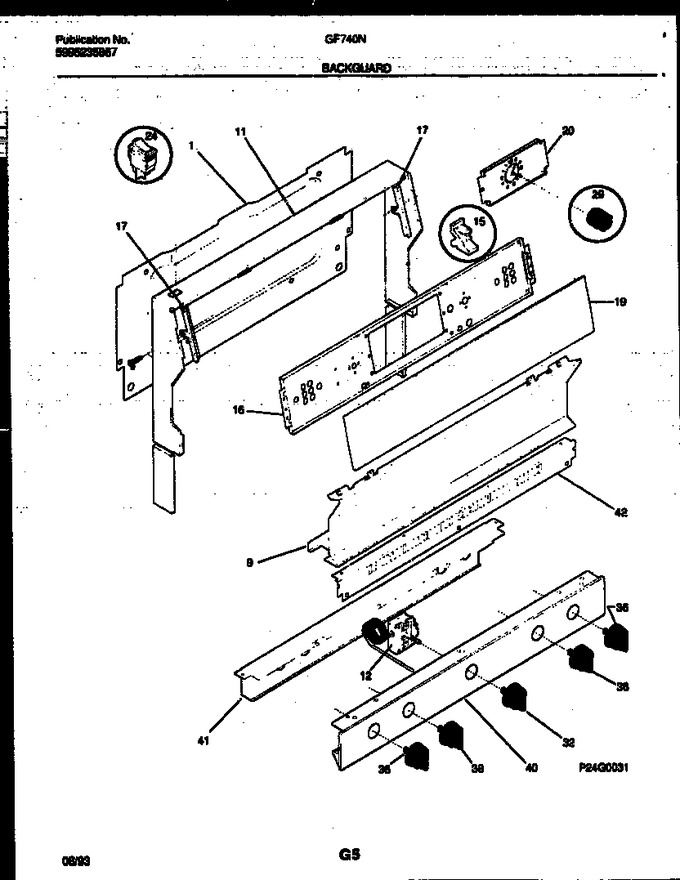

02 - Backguard


03 - Burner, Manifold And Gas Control


04 - Body Parts


05 - Cooktop And Broiler Drawer Parts


06 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028703		Shield-backguard, Rear Wall		Appelez-nous	-
9	316012502		Trim-splasher, Almond		Appelez-nous	-
11	3206432		Trim-wrapper		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	5303274090		Plate, Instrument Mtg		Appelez-nous	-
17	3131240		Trim-glass Retainer, (2)		Appelez-nous	-
19	5303212901		Panel-control, Glass		Appelez-nous	-
20	5303212900		Clock/timer, Analog 1 Stem		Appelez-nous	-
24	5303208662		Switch-oven Light, Rocker		Appelez-nous	-
29	5303212756		Knob-clock		Appelez-nous	-
32	5303212899		Knob - Thermostat		Appelez-nous	-
36	5303212749		Knob-top Valve, (4)		Appelez-nous	-
40	5303211153		Panel-manifold		Appelez-nous	-
41	3203443		Cover-manifold		Appelez-nous	-
42	3131241		Trim-vent		Appelez-nous	-
