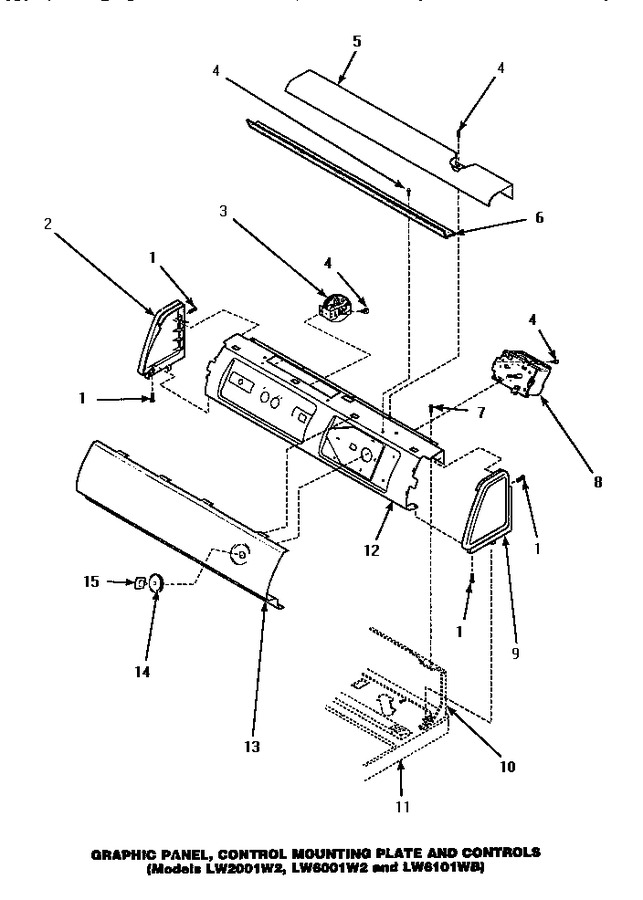

LW6101WB (BOM: PLW6101WB A) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	WP90767	Screw, 8b-18x3/8 Slt (Replaces: 501086)		Immediately	$ 7.04
2	D504009WP	Panel,end-lh (Replaces: 34818W)		Immediately	$ 22.20
2	34816	Panel, End (blk,l.h.)	Appelez-nous	-
3	35012	Switch,pressure-fixed	Appelez-nous	-
4	WP90767	Screw,8b-18 X 3/8 Ind (Replaces: 23962)		Immediately	$ 7.04
5	34824W	Cover, Top (computor)	Appelez-nous	-
5	34823	Cover, Top	Appelez-nous	-
6	Y34826	Diffuser,lamp-clear	Appelez-nous	-
7	W11233072	Screw,8-18 X 3/8 Phil Pan Hd (Replaces: 34904)		Immediately	$ 12.62
8	31238	Timer,2 Cycle	Appelez-nous	-
9	D504008WP	Panel,end-rh (Replaces: 34817W)			$ 19.23
9	34815	Panel, End R.h. (blk)	Appelez-nous	-
10	Y00000000	See Note Control Hood Rear Panel -- (see Cabinet Top Page)	Appelez-nous	-
11	Y00000000	See Note Cabinet Top -- (see Cabinet Top Page)	Appelez-nous	-
12	34821	Control Mounting Plate	Appelez-nous	-
13	37636W	Panel, Graphics	Appelez-nous	-
13	DE81-06191A	Panel, Graphics (Replaces: 36628)			$ 158.58
13	36615	Panel, Graphics	Appelez-nous	-
14	37773W	Skirt, Timer Knob	Appelez-nous	-
14	33817	Assy,timer Skirt-black	Appelez-nous	-
15	201501W	Knob, Timer (Replaces: 35333W)		Immediately	$ 16.52
15	33897	Knob,timer-washer-blac			$ 22.96
