Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303212754 Panel-control, Glass Appelez-nous -
2 5303212757 Knob-sel Sw Appelez-nous -
3 5303212756 Knob-clock (3) Appelez-nous -
4 5303212758 Knob-thermostat Appelez-nous -
5 5303212752 Clock Appelez-nous -
6 5303274090 Plate-instr Mtg Appelez-nous -
7 5308037896 Indicator Light Special Order $ 39.75

8 3201728 Indicator-light Lock, Red Appelez-nous -
9 3131240 Trim-glass Retainer, (2) Appelez-nous -
10 5303271746 Thermostat Special Order $ 414.28

11 5303131237 Support, Backguard Appelez-nous -
12 5303212678 Switch-sel Appelez-nous -
13 3206461 Trim-wrapper Appelez-nous -
14 3131241 Trim-vent Appelez-nous -
15 5303212534 Trim-splasher (white) Appelez-nous -
16 5303279360 Shield-b/g Appelez-nous -
*58433 3204745 Bushing, Control Shaft Appelez-nous -
*58434 3018820 Shield-b/g Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

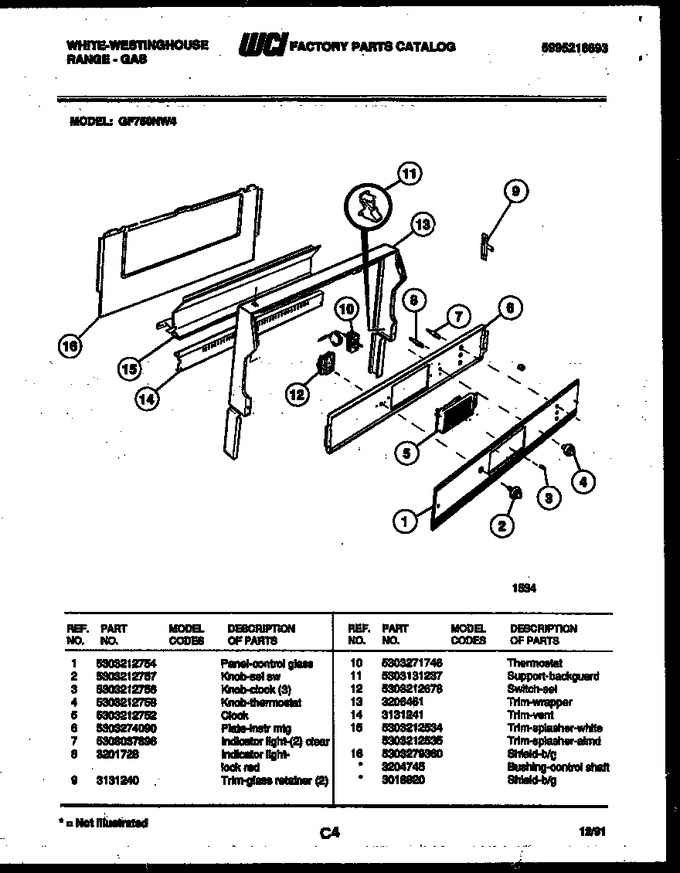

Diagram for GF750NW4
