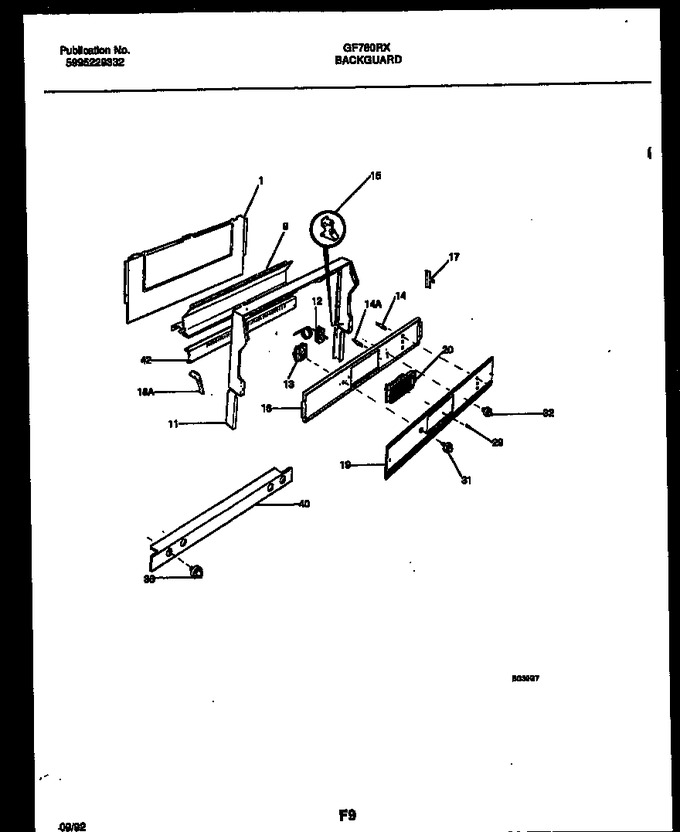

02 - Backguard
03 - Burner, Manifold And Gas Control
04 - Body Parts
05 - Body Parts
06 - Cooktop And Drawer Parts
07 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316028703 | Shield-backguard, Rear Wall |
|
- | |||||
| 9 | 316012501 | Trim-splasher, White |
|
- | |||||
| 11 | 3206461 | Trim-wrapper |
|
- | |||||
| 12 | 5303271746 | Thermostat-oven |
|
$ 414.28 | |||||
| 13 | 5303212678 | Switch Selector |
|
- | |||||
| 14 | 5308037896 | Indicator Light |
|
$ 39.75 | |||||
| 15 | 5303131237 | Support-backguard,(2) |
|
- | |||||
| 16 | 5303274090 | Plate, Instrument Mtg |
|
- | |||||
| 17 | 5303210953 | Trim-glass Retainer, (2) |
|
- | |||||
| 19 | 316045804 | Panel-control, Glass |
|
- | |||||
| 20 | 316038101 | Clock/timer, Radial 3 Stem |
|
- | |||||
| 29 | 316038300 | Knob-clock, (3) |
|
- | |||||
| 31 | 316016911 | Knob-selector |
|
- | |||||
| 32 | 316016811 | Knob-thermostat, White |
|
- | |||||
| 36 | 5303292705 | Knob-top Valve, (4) |
|
- | |||||
| 40 | 316009266 | Panel-manifold |
|
- | |||||
| 42 | 3131241 | Trim-vent |
|
- | |||||
| *68675 | 5303272555 | Clip-backguard |
|
- | |||||
| *68675 | 3204745 | Bushing-ctrl Shaft |
|
- | |||||
| 14A | 3201728 | Light/lamp, Indicator, Red, Lock, Lock |
|
- |
