02 - Backguard
03 - Cooktop Parts

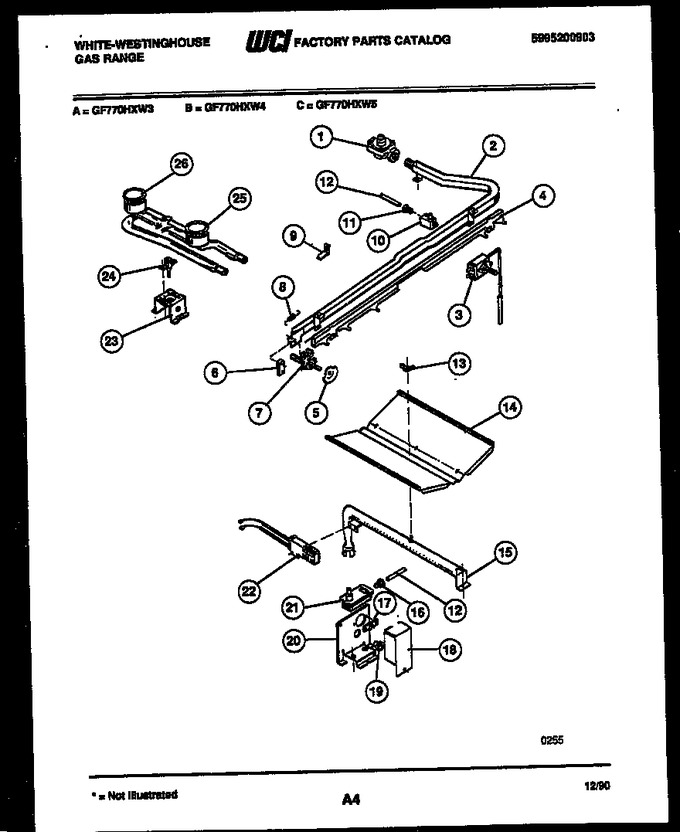

04 - Burner, Manifold And Gas Control
05 - Body Parts
06 - Door Parts
07 - Broiler Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308007974 | Pressure Regulator |
|
$ 309.02 | |||||
| 2 | 5308013906 | Manifold-pipe |
|
- | |||||
| 3 | 5308013926 | Thermostat |
|
- | |||||
| 4 | 3131856 | Slide Bar |
|
- | |||||
| 5 | 5308008002 | Cam Top Burner |
|
- | |||||
| 6 | 5303131094 | Switch - Micro |
|
- | |||||
| 7 | 5303131057 | Valve-top Burner |
|
- | |||||
| 8 | 5303131096 | Spring - Slide Bar |
|
- | |||||
| 9 | 5300009126 | Clip |
|
- | |||||
| 10 | 5303131099 | Valve-shut Off |
|
- | |||||
| 11 | 5303131064 | Lock Nut |
|
- | |||||
| 12 | 3131085 | Tube - Oven Feed |
|
- | |||||
| 13 | 08007979 | Wing Nut |
|
- | |||||
| 14 | 5303131061 | Baffle-oven Burner |
|
- | |||||
| 15 | 5303202752 | Burner-oven |
|
$ 26.83 | |||||
| 16 | 5308007983 | Lock Nut |
|
- | |||||
| 17 | 5308007985 | Terminal Block |
|
- | |||||
| 18 | 3131088 | Cover-valve |
|
- | |||||
| 19 | 3051101 | Bushing - Snap |
|
- | |||||
| 20 | 3131069 | Support - Oven Valve |
|
- | |||||
| 21 | 5308009419 | Valve-safety |
|
$ 232.67 | |||||
| 22 | 12400035 | Igniter-oven (Replaces: 5308009420) |
|
Immediately | $ 60.44 | ||||
| 23 | 3016870 | Support - Top Burner |
|
- | |||||
| 24 | 3015196 | Igniter 36`` Top Burner |
|
- | |||||
| 25 | 5303131080 | Burner-top Front |
|
$ 76.13 | |||||
| 26 | 5303131079 | Burner,top ,rear |
|
$ 129.78 |
