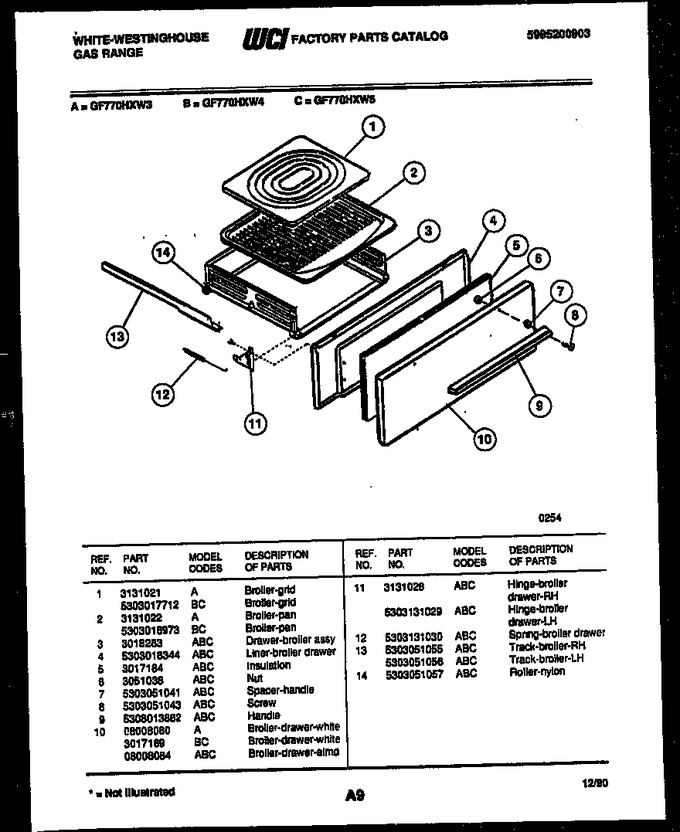

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017712 | Broiler Grid |
|
- | |||||
| 2 | 5303016973 | Broiler-pan |
|
- | |||||
| 3 | 3018283 | Drawer-broiler Assy. |
|
- | |||||
| 4 | 5303018344 | Liner-broiler Drawer |
|
- | |||||
| 5 | 3017184 | Insulation |
|
- | |||||
| 6 | 3051038 | Nut |
|
- | |||||
| 7 | 5303051041 | Spacer Handle |
|
- | |||||
| 8 | 5303051043 | Screw |
|
- | |||||
| 9 | 5308013882 | Handle |
|
- | |||||
| 10 | 08008084 | Panel-broiler (almond) |
|
- | |||||
| 11 | 3131028 | Hinge-broiler Drawer-rh |
|
- | |||||
| 12 | 5303131030 | Spring-broiler Drawer |
|
- | |||||
| 13 | 5303051055 | Track - Broiler Rh |
|
$ 56.60 | |||||
| 14 | 5303051057 | Roller-nylon |
|
- | |||||
| 11A | 5303131029 | Hinge-broiler Drawer-lh |
|
- | |||||
| 13A | 5303051056 | Track - Broiler Lh |
|
$ 78.44 |
