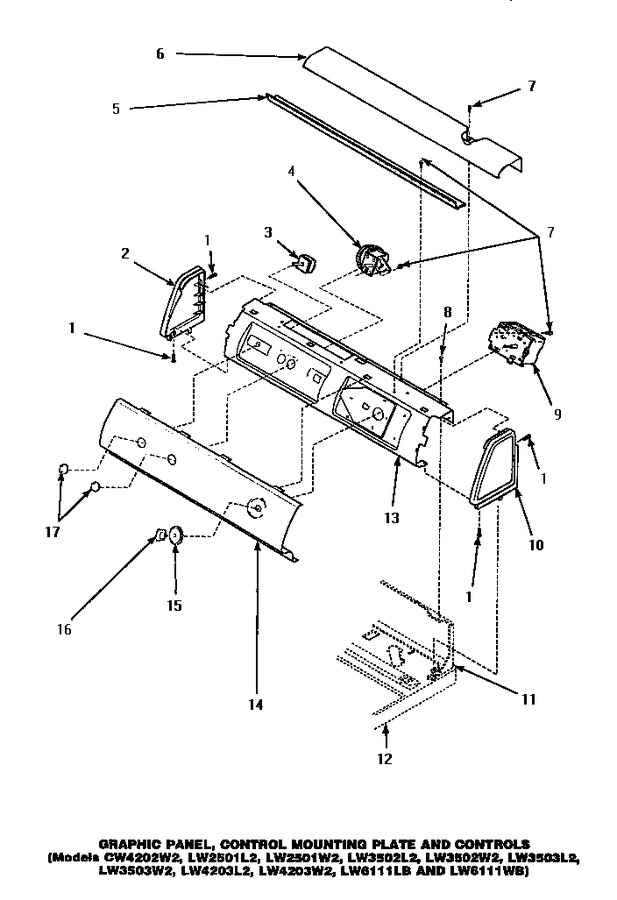

08 - Graphic Panel, Ctrl Mtg Plate & Ctrls


09 - Mix Vlv & Mtr Conn Blks/term & Extractor


10 - Mixing Valve Assy


11 - Motor, Mtg Brkt, Belt, Pump & Idler Assy


12 - Outer Tub, Cover & Pressure Hose


13 - Out-of-balance Switch


14 - Power Cord & Terminals


15 - Special Tools


16 - Special Tools


17 - Transmission Assy & Balance Ring


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)			Immediately	$ 7.04
2	34816		Panel, End (blk,l.h.)		Appelez-nous	-
3	35115		Switch,temperature 3 P				$ 30.67
4	39035P		Pressure Switch   (Replaces: 35010)				$ 106.41
4	201927P		Pressure Switch   (Replaces: 36045)				$ 85.88
5	Y34826		Diffuser,lamp-clear		Appelez-nous	-
6	34823		Cover, Top		Appelez-nous	-
7	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
8	W11233072		Screw,8-18 X 3/8 Phil Pan Hd   (Replaces: 34904)			Immediately	$ 12.62
9	31239P		Timer,3 Cycle   (Replaces: 31239)			Immediately	$ 550.63
10	34815		Panel, End R.h. (blk)		Appelez-nous	-
11	Y00000000		See Note Control Hood Rear Panel -- (see Cabinet Top And Control Hood Rear Panel Page)		Appelez-nous	-
12	Y00000000		See Note Cabinet Top -- (see Cabinet Top And Control Hood Rear Panelpage)		Appelez-nous	-
13	34821		Control Mounting Plate		Appelez-nous	-
14	36884		Panel, Graphics		Appelez-nous	-
14	DE81-09505A		Panel, Graphics   (Replaces: 36865)				$ 152.98
14	Y36614		Panel, Graphics		Appelez-nous	-
14	DE81-06992A		Panel, Graphics   (Replaces: 36883)				$ 115.57
15	34848		Assy,timer Skirt		Appelez-nous	-
16	34844		Knob,timer				$ 19.62
17	34847		Assy,knob-rotary		Appelez-nous	-
