SELECT A DIAGRAM

02 - Backguard


03 - Burner Box Parts


04 - Cooktop Parts


05 - Door Parts


06 - Burner, Manifold And Gas Control


07 - Body Parts

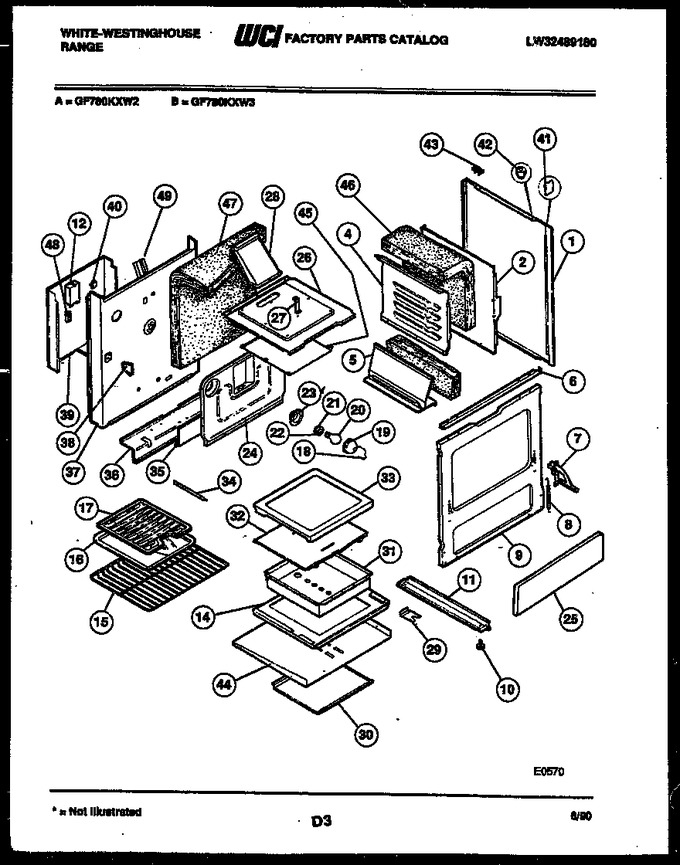

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08014019		Body Side Panel (almond)		Appelez-nous	-
2	3131794		Shield Side Heat (2)		Appelez-nous	-
4	3016533		Liner-right Side		Appelez-nous	-
5	3131053		Shield-burner Box Rs		Appelez-nous	-
6	3131811		Support-control Panel		Appelez-nous	-
7	3205895		Hinge-oven Door Right		Appelez-nous	-
8	3009435		Spring Oven Door (2)		Appelez-nous	-
9	3205905		Frame-front		Appelez-nous	-
10	3051080		Leg Leveler (4)		Appelez-nous	-
11	08068047		Rail - Base (2)		Appelez-nous	-
12	3200669		Module-spark		Appelez-nous	-
14	3016875		Lining-oven Bottom		Appelez-nous	-
15	3015714		Rack - Oven (2)		Appelez-nous	-
16	3016973		Pan-broiler		Appelez-nous	-
17	3016974		Grid-broiler Pan		Appelez-nous	-
18	3205904		Retainer Oven Light Lens		Appelez-nous	-
19	3131809		Lens-oven Light		Appelez-nous	-
20	3013071		Bulb-oven		Appelez-nous	-
21	3016399		Socket Housing		Appelez-nous	-
22	3009410		Receptacle-oven		Appelez-nous	-
23	3051511		Cup, Oven Light				$ 60.22
24	3200915		Liner Oven Back		Appelez-nous	-
25	3012964		Panel-almond		Appelez-nous	-
26	3131802		Liner Oven Top		Appelez-nous	-
27	3131800		Bracket,burner Box		Appelez-nous	-
28	3016877		Vent Box Assembly		Appelez-nous	-
29	3131041		Bracket-insulation		Appelez-nous	-
30	08068050		Shield		Appelez-nous	-
31	08068046		Pan Oven Burner		Appelez-nous	-
32	3131823		Baffle Oven Bottom		Appelez-nous	-
33	3016975		Oven-bottom Plate		Appelez-nous	-
34	3016976		Shield-capillary Bulb		Appelez-nous	-
35	08068039		Cover Control Valve		Appelez-nous	-
36	3131831		Support Control Valve		Appelez-nous	-
37	3131833		Main Back- 30 S/c		Appelez-nous	-
38	3051096		Support,oven Rear		Appelez-nous	-
39	3131835		Cover - Back Wire		Appelez-nous	-
40	3131839		Thermostat Bake Broil Select		Appelez-nous	-
41	3131791		Clip-backsplash Cover				$ 19.01
42	3051063		Grommet Plastic		Appelez-nous	-
43	3016129		Grommet Main Top		Appelez-nous	-
44	3131820		Retainer-bottom Insulation		Appelez-nous	-
45	08011508		Baffle Broiler Burner		Appelez-nous	-
46	3131795		Insulation - Wrap		Appelez-nous	-
47	3131840		Insulation-top & Back		Appelez-nous	-
48	08007985		Terminal Board		Appelez-nous	-
49	3131046		Channel Bk Wire		Appelez-nous	-
4A	3016534		Liner-left Side		Appelez-nous	-
5A	3131054		Shield-burner Box, Ls		Appelez-nous	-
7A	3205894		Hinge-oven Door Left				$ 55.91

    View Diagram in Separate Window       Print Part List
