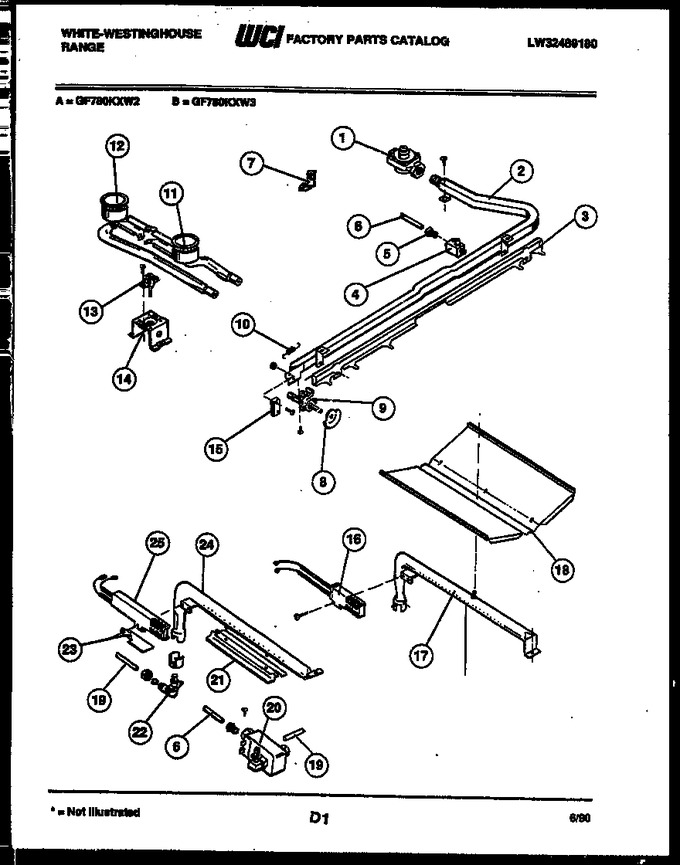

06 - Burner, Manifold And Gas Control


07 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08007974		Pressure Regulator		Appelez-nous	-
2	08013906		Manifold Pipe		Appelez-nous	-
3	3131856		Bar-slide		Appelez-nous	-
4	3131099		Valve - Shut Off		Appelez-nous	-
5	3131064		Nut-loxit		Appelez-nous	-
6	3131863		Tube - Oven Feed		Appelez-nous	-
7	9126		Clip - Capillary (2)				$ 24.99
8	08008002		Cam - Top Burner (4)		Appelez-nous	-
9	3131057		Valve - Top Burner (4)		Appelez-nous	-
10	3131096		Spring - Slide Bar		Appelez-nous	-
11	3131080		Burner Front Top (2)		Appelez-nous	-
12	3131079		Burner Rear Top (2)		Appelez-nous	-
13	3203971		Igniter-top (2)		Appelez-nous	-
14	3202964		Support-top Burner (2)		Appelez-nous	-
15	3131094		Switch-micro Front Mtg		Appelez-nous	-
16	12400035		Igniter-oven\   (Replaces: 08009420)			Immediately	$ 60.44
17	3131860		Burner Oven Bake		Appelez-nous	-
18	3131823		Baffle Bake Burner		Appelez-nous	-
19	3131866		Tube Broil Feed		Appelez-nous	-
20	3017415		Valve Safety		Appelez-nous	-
21	08011509		Baffle Broiler Burner		Appelez-nous	-
22	08011470		Pin Elbow Mixer		Appelez-nous	-
23	3131871		Shield Igniter				$ 7.93
24	3131873		Burner Broiler		Appelez-nous	-
25	3016211		Igniter Broiler		Appelez-nous	-
*30998	08007999		Spacer Slide Bar		Appelez-nous	-
