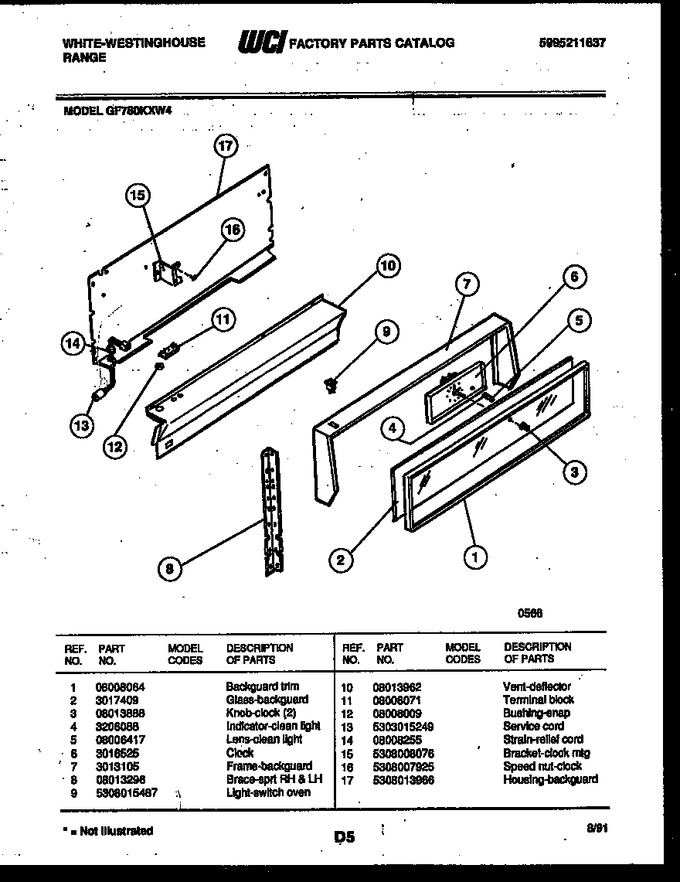

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08008064 | Backguard Trim |
|
- | |||||
| 2 | 3017409 | Glass-backguard |
|
- | |||||
| 3 | 08013888 | Knob-clock (2) |
|
- | |||||
| 4 | 3206088 | Indicator-clean Light |
|
- | |||||
| 5 | 08006417 | Lens |
|
- | |||||
| 6 | 3016525 | Clock |
|
- | |||||
| 7 | 3013105 | Frame-backguard |
|
- | |||||
| 8 | 08013296 | Brace-sprt Rh & Lh |
|
- | |||||
| 9 | 5308015487 | Light-switch Oven |
|
$ 61.43 | |||||
| 10 | 08013962 | Vent - Deflector |
|
- | |||||
| 11 | 08008071 | Terminal Block |
|
- | |||||
| 12 | 08008009 | Bushing,snap |
|
- | |||||
| 13 | 5303015249 | Service Cord |
|
- | |||||
| 14 | 08008255 | Strain-relief Cord |
|
- | |||||
| 15 | 5308008076 | Bracket-clock Mtg |
|
- | |||||
| 16 | 5308007925 | Speed Nut-clock |
|
- | |||||
| 17 | 5308013966 | Housing - Backguard |
|
- |
