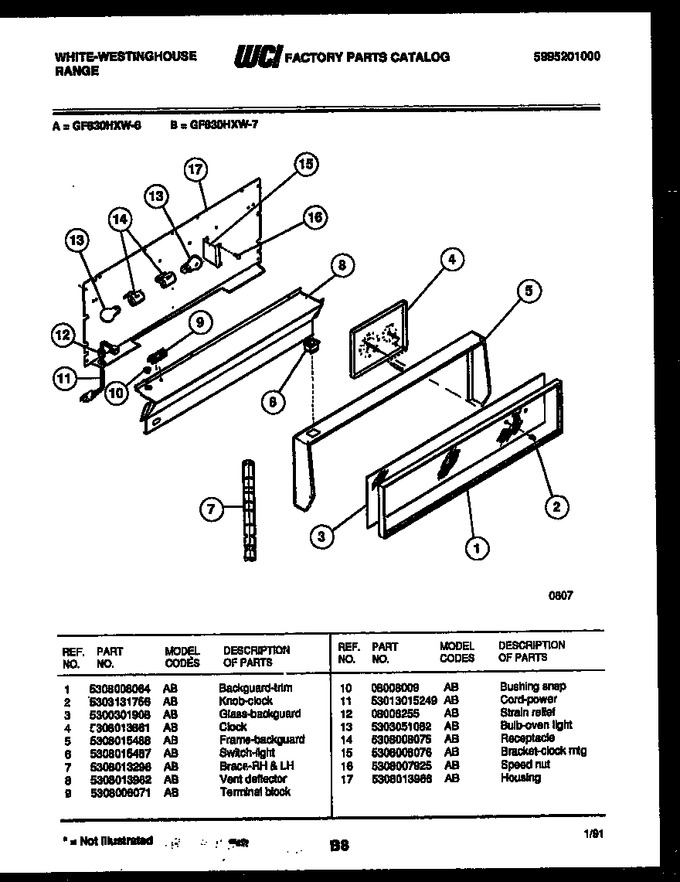

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308008064 | Backguard Trim |
|
- | |||||
| 2 | 5303131756 | Knob - Clock |
|
- | |||||
| 3 | 5300301908 | Glass-backguard |
|
- | |||||
| 4 | 5308013861 | Clock |
|
- | |||||
| 5 | 5308015488 | Frame-backguard |
|
- | |||||
| 6 | 5308015487 | Switch - Light |
|
$ 61.43 | |||||
| 7 | 5308013296 | Brace Rh & Lh |
|
- | |||||
| 8 | 5308013962 | Vent-deflector |
|
- | |||||
| 9 | 5308008071 | Terminal Block |
|
- | |||||
| 10 | 08008009 | Bushing,snap |
|
- | |||||
| 11 | 53013015249 | Cord-power |
|
- | |||||
| 12 | 08008255 | Strain - Relief |
|
- | |||||
| 13 | 5303051082 | Bulb Oven Light |
|
- | |||||
| 14 | 5308008075 | Receptacle |
|
- | |||||
| 15 | 5308008076 | Bracket-clock Mtg |
|
- | |||||
| 16 | 5308007925 | Speed - Nut |
|
- | |||||
| 17 | 5308013966 | Housing |
|
- |
