Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303017712 Grid-broiler Appelez-nous -
2 5303016973 Pan-broiler Appelez-nous -
3 3018283 Drawer-brioler Assy Appelez-nous -
4 5303018344 Liner Broiler Door Appelez-nous -
5 3017184 Insulation Appelez-nous -
6 3051038 Nut Appelez-nous -
7 5303051041 Spacer Handle Appelez-nous -
8 5303051043 Screw Appelez-nous -
9 5308013882 Handle Appelez-nous -
10 3017169 Panel Broiler - White Appelez-nous -
11 3131028 Hinge Broiler Drwr-rh Appelez-nous -
12 5303131030 Spring-broiler Appelez-nous -
13 5303051055 Track - Broiler Rh Special Order $ 56.60

14 5303051057 Roller Appelez-nous -
11A 5303131029 Hinge Broiler Drwr-lh Appelez-nous -
13A 5303051056 Track - Broiler Lh Special Order $ 78.44


    View Diagram in Separate Window     Print Icon   Print Part List

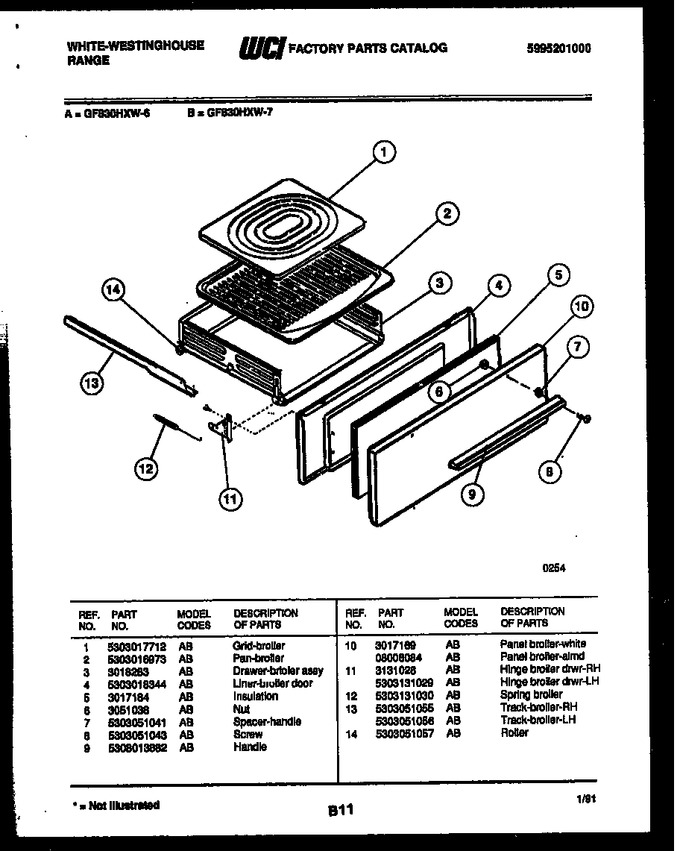

Diagram for GF830HXW7
