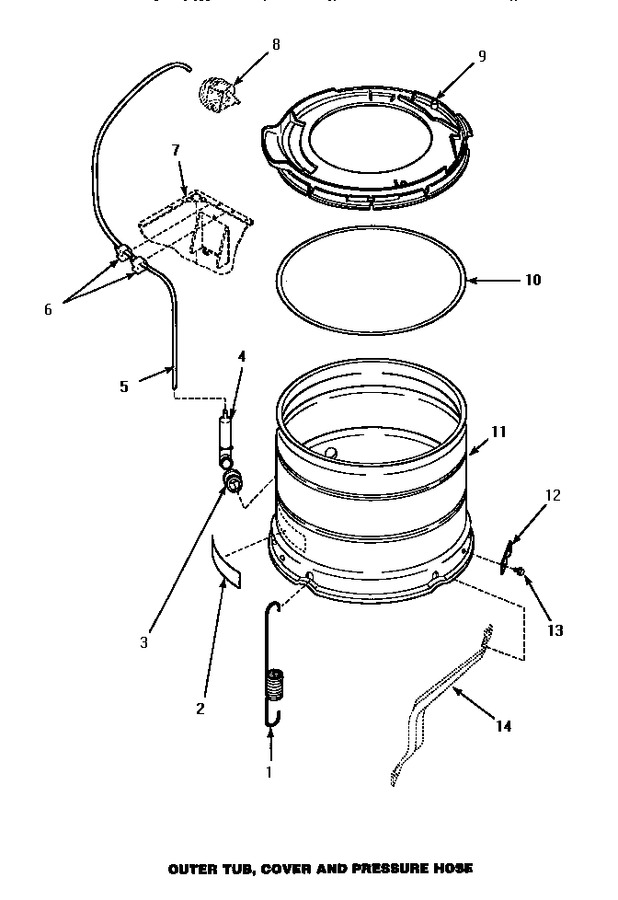

12 - Outer Tub, Cover & Pressure Hose


13 - Out-of-balance Switch


14 - Power Cord & Terminals


15 - Special Tools


16 - Special Tools


17 - Transmission Assy & Balance Ring


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	35948		Spring,leg-large Tub		Appelez-nous	-
2	500049		Sticker		Appelez-nous	-
3	29175		Grommet				$ 8.56
4	COMM PART		Pressure Bulb   (Replaces: 30907)		Appelez-nous	-
5	29213		Pressure Hose		Appelez-nous	-
6	21036		Clip,cable				$ 62.49
7	Y00000000		See Note Cabinet Assembly -- (see Front Panel Page)		Appelez-nous	-
8	Y00000000		See Note Pressure Switch -- (see Graphic Panel Page)		Appelez-nous	-
9	36025P		Assy, Tub Cover& Gasket				$ 137.10
10	32857		Gasket,tub Cover Small				$ 14.64
11	34438P		Assy, Outer Tub				$ 334.80
12	27926		Plate,leg .063		Appelez-nous	-
13	35369		Screw			Immediately	$ 6.95
14	Y00000000		See Note Support Leg -- (see Bearing Housing Page)		Appelez-nous	-
