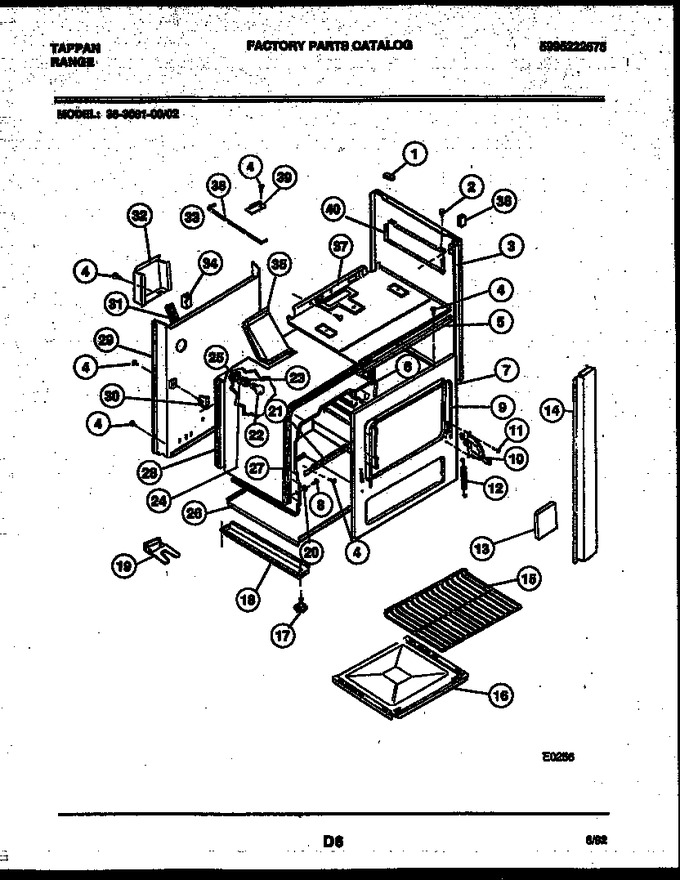

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205587 | Grommet-maintop |
|
- | |||||
| 2 | 3051063 | Grommet |
|
- | |||||
| 3 | 5303051061 | Panel-body Side (white) |
|
- | |||||
| 4 | 5303131801 | 10 X 3/8 Screw |
|
- | |||||
| 5 | 3205765 | Control Panel Support |
|
- | |||||
| 6 | 5303286732 | Right Side Lining |
|
- | |||||
| 6 | 5303286733 | Back Lining |
|
- | |||||
| 6 | 5303286731 | Top Lining |
|
- | |||||
| 6 | 5303286730 | Left Side Lining |
|
- | |||||
| 7 | 5303286729 | Front Frame |
|
- | |||||
| 8 | 08008037 | Shoulder Bolt (2 Req`d) |
|
- | |||||
| 9 | 5308008022 | Oven Door-seal |
|
$ 124.89 | |||||
| 10 | 5303204670 | Right |
|
- | |||||
| 10 | 5303204672 | Left |
|
- | |||||
| 11 | 3051070 | 10-24 X 5/8 Screw |
|
- | |||||
| 12 | 5308008028 | Oven Door Spring |
|
- | |||||
| 13 | 5303286692 | Base Rail Support |
|
- | |||||
| 14 | 08013993 | Body Side Fille Panel White |
|
- | |||||
| 15 | 5303015714 | Oven Rack |
|
- | |||||
| 16 | 5303286741 | Oven Bottom |
|
- | |||||
| 17 | 318175510 | Leveling Bolt (Replaces: 5303210257) |
|
Immediately | $ 24.26 | ||||
| 18 | 5303210255 | Right |
|
- | |||||
| 18 | 5303210256 | Left |
|
- | |||||
| 19 | 3131041 | Installation Bracket |
|
- | |||||
| 20 | 3131040 | Washer |
|
- | |||||
| 21 | 3131038 | Oven Bottom Support |
|
- | |||||
| 22 | 3201908 | Oven Light Bulb |
|
- | |||||
| 23 | 316116400 | Oven Light Receptacle (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 24 | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| 25 | 5303271606 | Oven Light Cup |
|
- | |||||
| 26 | 3011645 | Main Bottom |
|
- | |||||
| 27 | 3017171 | Insulation, Top & Sides |
|
- | |||||
| 28 | 3017172 | Insulation, Oven Back |
|
- | |||||
| 29 | 5303286693 | Main Back |
|
- | |||||
| 30 | 3051096 | Oven Rear Support |
|
- | |||||
| 31 | 3131046 | Main Back Wire Channel |
|
- | |||||
| 32 | 316039100 | Spark Module Cover |
|
- | |||||
| 33 | 131202300 | 8 X 5/8 Screw (Replaces: 3131048) |
|
Immediately | $ 13.46 | ||||
| 34 | 5303209931 | Igniter Module Bord |
|
- | |||||
| 35 | 5303286747 | Flue Box |
|
- | |||||
| 36 | 3131791 | Bodyside Corner Clip |
|
$ 19.01 | |||||
| 37 | 316030503 | Burner Box Bottom |
|
- | |||||
| 38 | 3051554 | Main Top Support Rod |
|
- | |||||
| 39 | 6743 | Main Top Support Rod Bracket |
|
- | |||||
| 40 | 5303131053 | Heat Shield Right |
|
- | |||||
| 40 | 5303131054 | Heat Shield Left |
|
- | |||||
| *72497 | 316002109 | Wiring Diagram-(not For Purchase) |
|
- |
