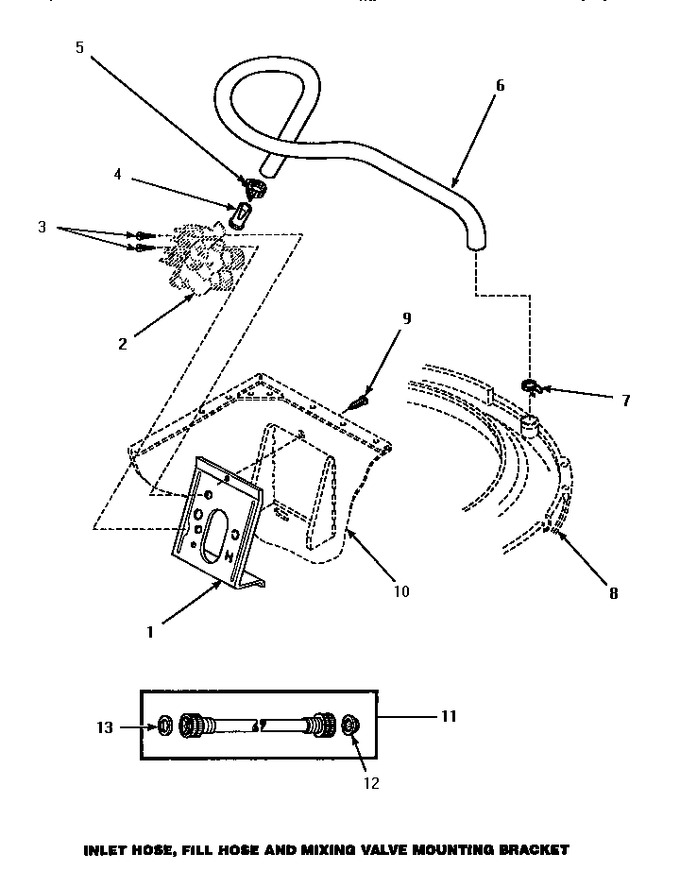

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	34972		Mixing Valve Mounting Bracket		Appelez-nous	-
2	Y00000000		See Note Mixing Valve Assembly -- (see Mixing Valve Assembly Page)		Appelez-nous	-
3	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
4	34500		Preventor, Backflow			Immediately	$ 6.95
5	36801		Clamp, Hose			Immediately	$ 9.22
6	38155		Hose,mix Valve To Tub   (Replaces: 35874)				$ 26.69
7	29210		Hose Clamp				$ 6.95
8	Y00000000		See Note Outer Tub Assembly -- (see Outer Tub Page)		Appelez-nous	-
9	WP27001200		Screw   (Replaces: 33562)				$ 6.91
10	Y00000000		See Note Cabinet Assembly -- (see Front Panel Page)		Appelez-nous	-
11	WP89503		Hose,water Inlet 5 Feet   (Replaces: 28330P)			Immediately	$ 21.68
12	28605		Washer, Filter		Appelez-nous	-
13	20290		Washer, 19/32 Idx1.031		Appelez-nous	-
