SELECT A DIAGRAM

02 - Control Panel


03 - Cooktop Parts


04 - Door Parts

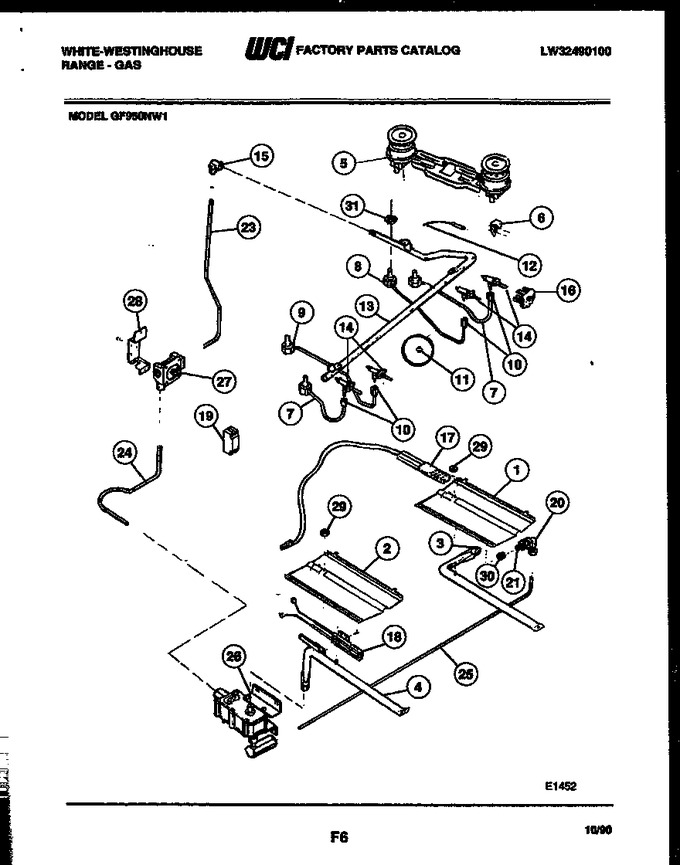

05 - Burner, Manifold And Gas Control


06 - Body Parts


07 - Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303210379		Baffle, Broil				$ 175.88
2	3131284		Baffle-oven				$ 155.77
3	08067935		Burner-broiler				$ 142.59
4	3131290		Burner-oven		Appelez-nous	-
5	5303131147		Burner-top-double		Appelez-nous	-
6	3016993		Retainer-ignitor		Appelez-nous	-
7	5303131970		Burner, Tube Front (2)		Appelez-nous	-
8	5303011569		Burner-tube-rr		Appelez-nous	-
9	5303011570		Burner-tube-lr		Appelez-nous	-
10	3131148		Nut-compressor (4)		Appelez-nous	-
11	08067945		Ferrule (4)		Appelez-nous	-
12	3200276		Base Ignitor (2)		Appelez-nous	-
13	3018861		Manifold Pipe		Appelez-nous	-
14	5303017846		Valve-top 3 Pos (4)				$ 162.02
15	08067948		Elbow 1/2 Np 9/16-24		Appelez-nous	-
16	5303131580		Switch-ignitor		Appelez-nous	-
17	5303935068		Ignitor, Broiler Burner   (Replaces: 5308067970)				$ 166.55
18	5303935066		Ignitor, Oven   (Replaces: 5303131300)			Immediately	$ 59.58
19	5303200669		Ignitor-module		Appelez-nous	-
20	5303208640		Mixer Elbow		Appelez-nous	-
21	3131358		Nut-hex		Appelez-nous	-
23	5303208495		Tube-alum W/ Fit (regul/manifold Pipe)		Appelez-nous	-
24	5303208494		Tube-alum W/ Fit (valve/regulator)		Appelez-nous	-
25	5303208493		Tube-alum W/ Fit (valve/mixer)		Appelez-nous	-
26	5303208499		Valve-safety-dual			Immediately	$ 559.67
27	5303208498		Control, Regulator		Appelez-nous	-
28	08067934		Bracket-regulator		Appelez-nous	-
29	154079601		Nut   (Replaces: 5303013272)				$ 0.41
30	08068015		Spud-50		Appelez-nous	-
31	3013279		Nut, Special				$ 2.34
*38250	3200277		Bracket-burner Mtg (2)		Appelez-nous	-
26A	3131737		Washer-repair (non-illustrated)				$ 5.59

    View Diagram in Separate Window       Print Part List
