New Model Search:

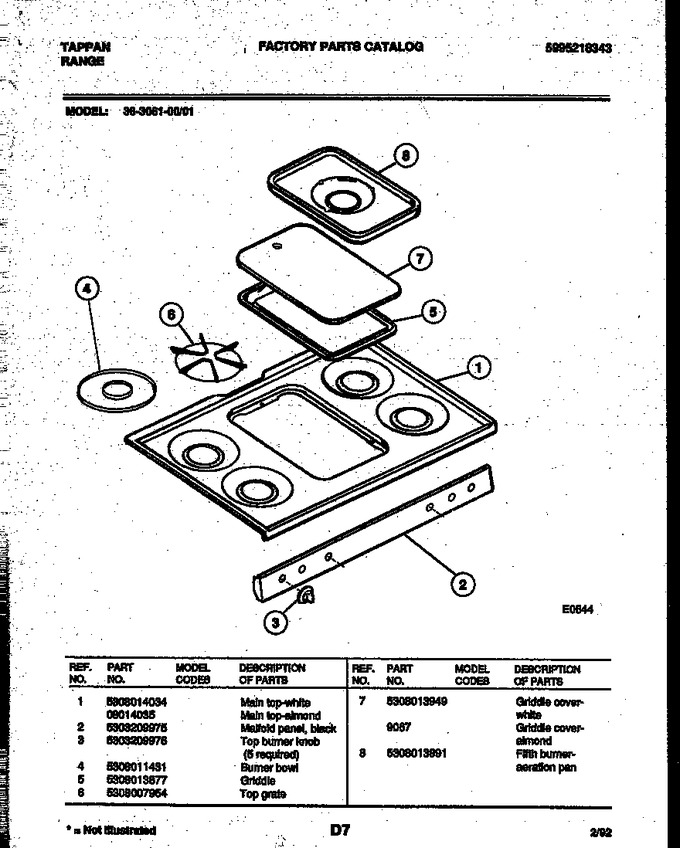

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08014035 | Main Top, Almond |
|
- | |||||
| 2 | 5303209975 | Maifold Panel, Black |
|
- | |||||
| 3 | 5303209976 | Top Burner Knob (5 Required) |
|
- | |||||
| 4 | 5308011431 | Burner Bowl |
|
- | |||||
| 5 | 5308013877 | Griddle |
|
- | |||||
| 6 | 5308007954 | Top Grate |
|
- | |||||
| 7 | 9067 | Griddle Cover-almond |
|
- | |||||
| 8 | 5308013991 | Fifth Burner Aeration Pan |
|
- |
