01 - Cavity And Turntable, Lit/optional

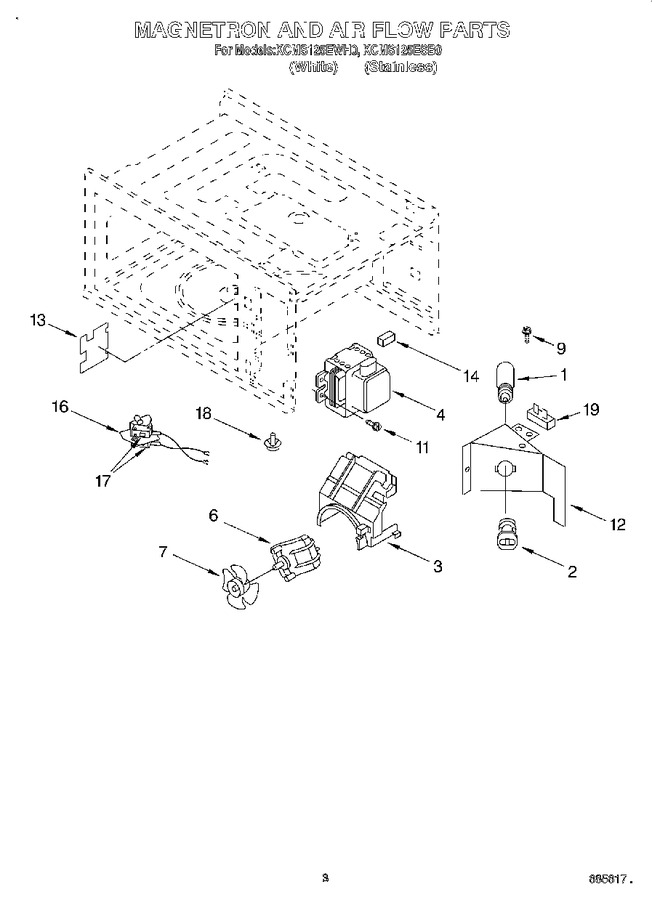

02 - Magnetron And Air Flow
03 - Cabinet
04 - Door And Latch
05 - Control Panel
06 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4313082 | Lamp, Oven |
|
- | |||||
| 2 | 4313102 | Socket, Lamp |
|
- | |||||
| 3 | 4313121 | Duct, Fan |
|
- | |||||
| 4 | 4313107 | Magnetron |
|
- | |||||
| 6 | 4313103 | Motor, Fan |
|
- | |||||
| 7 | 4313120 | Blade, Fan |
|
- | |||||
| 9 | 4357322 | Screw |
|
- | |||||
| 11 | 4365500 | Screw |
|
- | |||||
| 12 | 4313119 | Duct, Magnetron |
|
- | |||||
| 13 | 4313122 | Cover, Wave Guide |
|
- | |||||
| 14 | 4313126 | Cushion |
|
- | |||||
| 16 | 4313113 | Adapter, Service |
|
- | |||||
| 17 | 4392027 | Mocro Switch (Replaces: 4313055) |
|
$ 138.41 | |||||
| 18 | 4365606 | Foot |
|
- | |||||
| 19 | 4313106 | Fuse, Temp |
|
- |
