SELECT A DIAGRAM

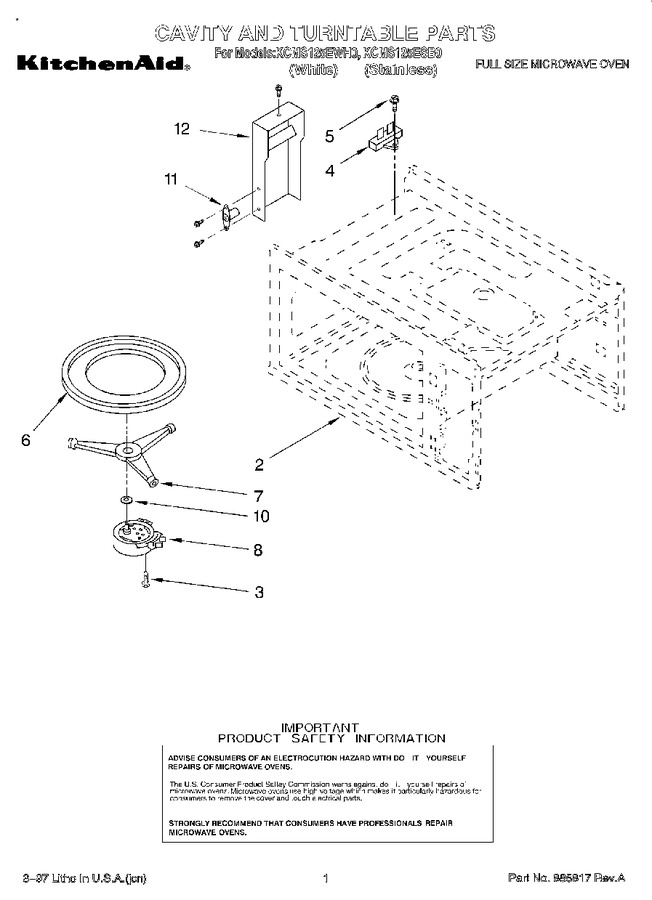

01 - Cavity And Turntable, Lit/optional


02 - Magnetron And Air Flow


03 - Cabinet


04 - Door And Latch


05 - Control Panel


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	4174757		Screw, 3 X 8 Mm		Appelez-nous	-
4	4313106		Fuse, Temp		Appelez-nous	-
5	4174826		Screw, 3 X 8 Mm		Appelez-nous	-
6	WP8184775		Tray, Glass   (Replaces: 4313640)				$ 128.72
7	4313124		Support, Turntable		Appelez-nous	-
8	4313108		Motor, Turntable		Appelez-nous	-
10	4313125		Gasket, Turntable		Appelez-nous	-
11	4313171		Sensor		Appelez-nous	-
11	4174757		Screw		Appelez-nous	-
12	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
12	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
12	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
12	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
12	242831		Wire (14 Ga. 200 C Red)				$ 342.23
12	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
12	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
12	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
12	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
12	4313173		Duct, Sensor		Appelez-nous	-
12	W11233072		Screw,   (Replaces: 4174784)			Immediately	$ 12.62
12	WP261869		Citrine White (1/2 Oz.)   (Replaces: 261869)				$ 23.85
12	832889		Cord Brown (1/2 Oz.)				$ 26.23
12	261900		Citrine White (6 Oz.)				$ 51.34
12	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
12	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
12	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
12	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
12	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
12	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	LIT4313774		Use & Care Guide		Appelez-nous	-
	4386638		30`` Built-in Kit (stainless)		Appelez-nous	-
	4386636		30`` Built-in Kit (white)		Appelez-nous	-
	4386635		27`` Built-in Kit (stainless)		Appelez-nous	-
	4386633		27`` Built-in Kit (white)		Appelez-nous	-
	4386632		24`` Built-in Kit (stainless)		Appelez-nous	-
	4386630		24`` Built-in Kit (white)		Appelez-nous	-
	LIT4313775		Installation, Instr.		Appelez-nous	-
	LIT4313776		Tech Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
