Diagram for 01 - Cavity And Turntable, Lit/optional
01 - Cavity And Turntable, Lit/optional

Diagram for 02 - Magnetron And Air Flow
02 - Magnetron And Air Flow

Diagram for 03 - Cabinet
03 - Cabinet

Diagram for 04 - Door And Latch
04 - Door And Latch

Diagram for 05 - Control Panel, Wiring Harness
05 - Control Panel, Wiring Harness

Diagram for 06 - Section
06 - Section


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4313673 Switch And Fuse Assembly Appelez-nous -
2 4392027 Secondary Switch   (Replaces: 4313611) Special Order $ 138.41

3 4392027 Switch, Light   (Replaces: 4313610) Special Order $ 138.41

4 4312877 Hook, Lever Appelez-nous -
5 4313624 Latch Lever Appelez-nous -
6 4313620 Latch Hook Appelez-nous -
7 W11233072 Screw,   (Replaces: 4174784) In-Stock Immediately $ 12.62

10 4357359 Screen, Door (stainless Model) Appelez-nous -
10 4357358 Screen, Door (white) Appelez-nous -
10 4357357 Screen, Door (almond) Appelez-nous -
11 4313650 Choke Cover Appelez-nous -
14 4313652 Latch, Door Appelez-nous -
15 4174992 Spring, Latch Appelez-nous -
18 4174899 Holder, Fuse Appelez-nous -
19 4313638 Hinge, Upper Appelez-nous -
20 4357356 Door, Complete (stainless) Appelez-nous -
20 4357354 Door, Complete (almond) Appelez-nous -
20 4357355 Door, Complete (white) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

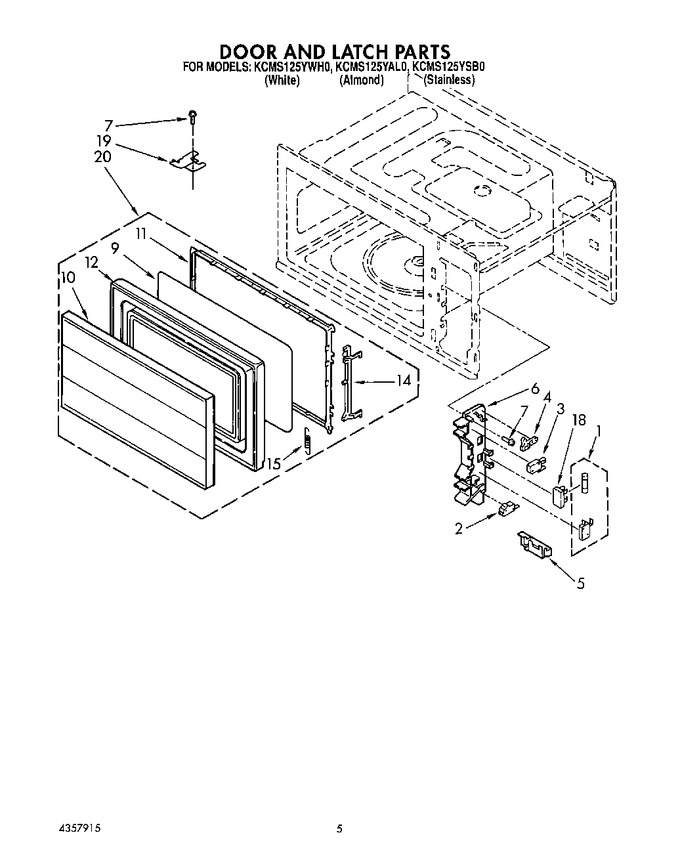

Diagram for KCMS125YAL0
