Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3147072 Harness, Wiring Main Appelez-nous -
2 3147164 Harness, Wiring Control Appelez-nous -
4 311575 Block, Disconnect Appelez-nous -
5 308665 Housing, Connector Appelez-nous -
7 310241 Insulator Pad, Straight Appelez-nous -
8 312795 Terminal Appelez-nous -
10 WP248562 Terminal   (Replaces: 248562) Special Order $ 6.95

11 WPW10339879 Tie Cable   (Replaces: 309330) Special Order $ 7.11


    View Diagram in Separate Window     Print Icon   Print Part List

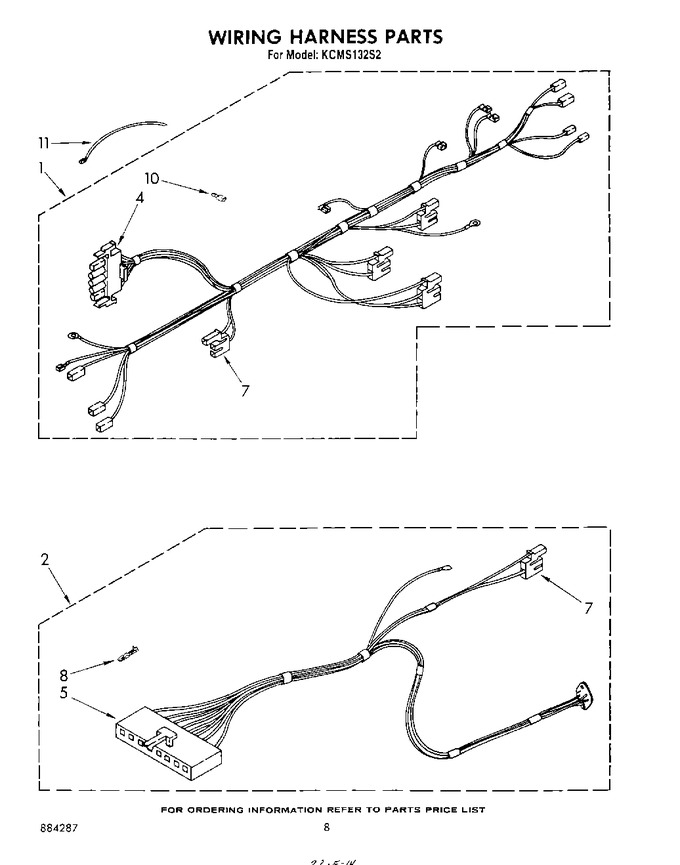

Diagram for KCMS132S2
