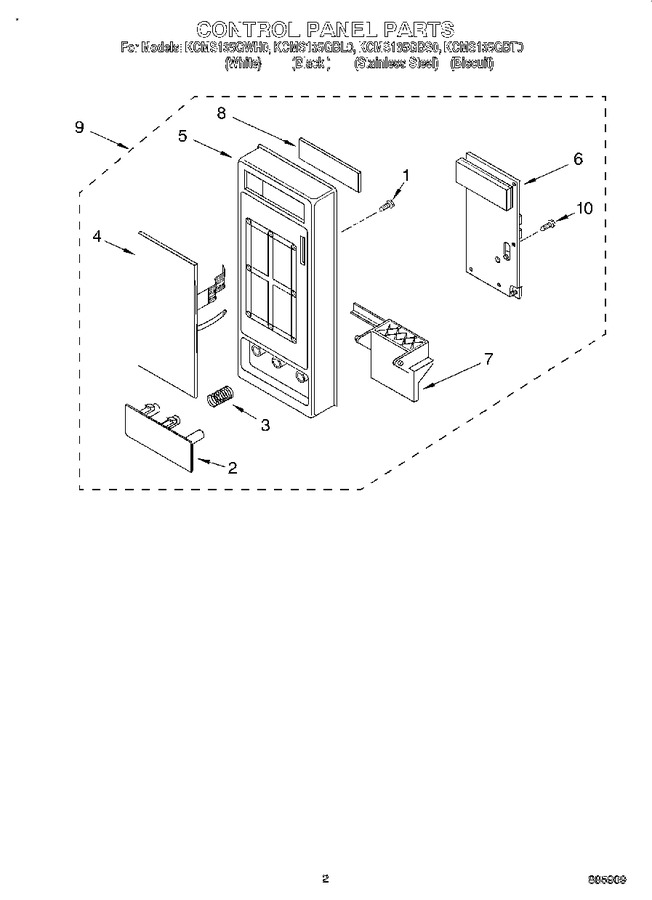

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4358381		Screw		Appelez-nous	-
2	4359846		Release Button (black)		Appelez-nous	-
2	4359937		Release Button (biscuit For Ss Use No.9)		Appelez-nous	-
2	4359845		Release Button (white)		Appelez-nous	-
3	4158178		Spring, Button				$ 5.83
4	4359848		Key Membrane (black)		Appelez-nous	-
4	4359849		Key Membrane (stainless Steel)		Appelez-nous	-
4	4359938		Key Membrane (biscuit)		Appelez-nous	-
4	4359847		Key Membrane (white)		Appelez-nous	-
5	4359851		Control Panel (black)		Appelez-nous	-
5	4359939		Control Panel (biscuit For Ss Use No.9)		Appelez-nous	-
5	4359850		Control Panel (white)		Appelez-nous	-
6	4359940		P.c.b. Sub Assy (biscuit)		Appelez-nous	-
6	4359745		P.c.b. Sub Assy (black)		Appelez-nous	-
7	4359718		Lever, Release		Appelez-nous	-
8	4359720		Window		Appelez-nous	-
9	4359854		Controller Assy. (stainless Steel)		Appelez-nous	-
10	4358883		Screw		Appelez-nous	-
