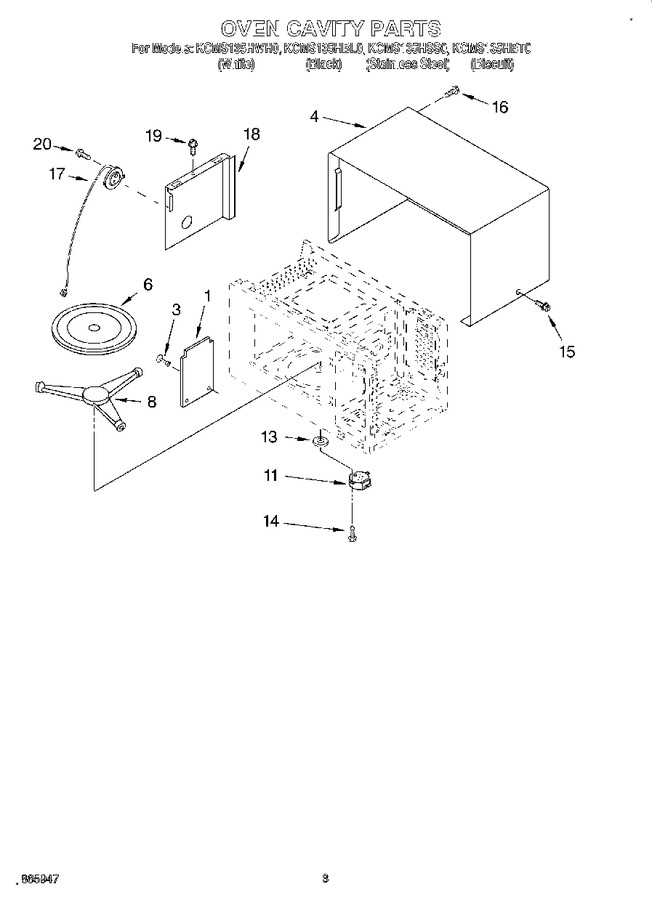

03 - Oven Cavity
04 - Latch Board
05 - Oven Interior
06 - Base Plate
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4359777 | Canopy |
|
$ 38.18 | |||||
| 3 | WP4359508 | Rivet (Replaces: 4359508) |
|
$ 8.28 | |||||
| 4 | 4359853 | Outer Case (stainless Steel) |
|
- | |||||
| 4 | 4359779 | Outer Case (white) |
|
- | |||||
| 4 | 4359804 | Outer Case (black) |
|
- | |||||
| 4 | 4359941 | Outer Case (biscuit) |
|
- | |||||
| 6 | WPW10267856 | Tray, Glass (Replaces: 4359780) |
|
$ 63.44 | |||||
| 8 | 4359884 | Support, Turntable |
|
- | |||||
| 11 | 4359885 | Motor, Turntable |
|
- | |||||
| 13 | 8171805 | Seal, Water |
|
- | |||||
| 14 | 4358188 | Screw |
|
- | |||||
| 15 | 8171876 | Screw (white) |
|
- | |||||
| 15 | 8171877 | Screw (black) |
|
- | |||||
| 16 | 8171862 | Screw |
|
- | |||||
| 17 | 4359892 | Sensor |
|
$ 37.20 | |||||
| 18 | 8171997 | Sensor Duct |
|
- | |||||
| 19 | 4358192 | Screw |
|
- | |||||
| 20 | 4358450 | Screw |
|
- |
