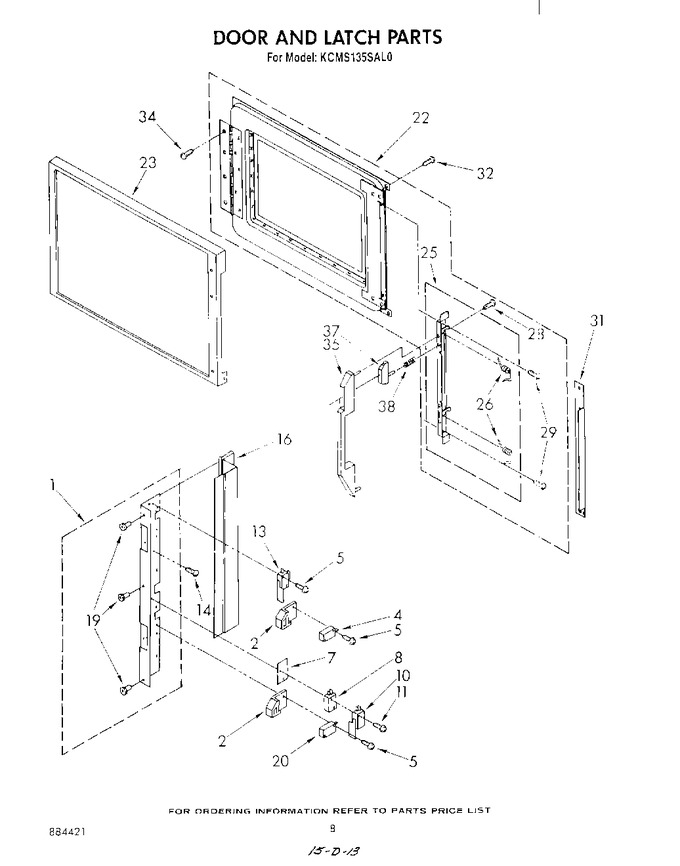

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311354		Bracket, Catch		Appelez-nous	-
2	311795		Catch (2)		Appelez-nous	-
4	814037		Switch, Primary Interlock   (Replaces: 661146)				$ 81.32
4	814037		Switch, Primary Interlock (alt.)   (Replaces: 313125)				$ 81.32
5	312717		Screw 4-40x3/4 (8)		Appelez-nous	-
7	313126		Insulator		Appelez-nous	-
8	313123		Switch, Monitor/ Oven Light (alt.)		Appelez-nous	-
8	661144		Switch, Monitor/ Oven Light		Appelez-nous	-
8	313075		Switch, Monitor/ Oven Light (alt.)		Appelez-nous	-
10	313124		Switch, Monitor/ Oven Light (alt.)		Appelez-nous	-
10	313076		Switch, Monitor/ Oven Light (alt.)		Appelez-nous	-
10	661145		Switch, Monitor/ Oven Light		Appelez-nous	-
11	310211		Screw, 4-40 X 1 (2)		Appelez-nous	-
13	313120		Switch, Electronic		Appelez-nous	-
14	309080		Screw 8-32 X 3/8		Appelez-nous	-
16	311360		Shield		Appelez-nous	-
19	311928		Rivet, Pop (6)				$ 5.33
20	814037		Switch, Secondary Interlock (alt.)   (Replaces: 313077)				$ 81.32
20	814037		Switch, Secondary Interlock (alt.)   (Replaces: 313125)				$ 81.32
20	814037		Switch, Secondary Interlock   (Replaces: 661146)				$ 81.32
22	3171805		Door, Inner		Appelez-nous	-
23	3171817		Frame, Door		Appelez-nous	-
25	329066		Latch, Complete		Appelez-nous	-
26	311352		Spring, Torsion (2)		Appelez-nous	-
28	303776		Screw, 8-32 X 5/16 (2)   (Replaces: 313811)		Appelez-nous	-
29	313820		Screw (2)		Appelez-nous	-
31	3148299		End Cap		Appelez-nous	-
32	313823		Screw 8-32 (4)		Appelez-nous	-
34	WPW10068250		Screw, 8-32 X .29 (4)   (Replaces: 311777)				$ 3.66
35	3149338		Handle, Door		Appelez-nous	-
37	3149339		Button, Door Handle		Appelez-nous	-
38	242831		Wire (14 Ga. 200 C Red)				$ 342.23
38	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
38	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
38	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
38	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
38	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
38	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
38	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
38	310197		Spring, Compression		Appelez-nous	-
38	WP261869		Citrine White (1/2 Oz.)   (Replaces: 261869)				$ 23.85
38	832899		Cord Brown (1/2 Oz.)		Appelez-nous	-
38	261900		Citrine White (6 Oz.)				$ 51.34
38	830881		Cord Brown (13 Oz.)		Appelez-nous	-
38	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
38	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
38	832987		Built-in Kits (30``)		Appelez-nous	-
38	832989		24`` Built-in Kit		Appelez-nous	-
38	832991		27``built-in Kit		Appelez-nous	-
38	832993		Wall Mount Kit		Appelez-nous	-
38	832985		Bi-level Cooking Rack		Appelez-nous	-
38	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
38	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
38	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
38	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
38	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	LIT3147005		Cookbook		Appelez-nous	-
	LIT3147213		Tech Sheet		Appelez-nous	-
	LIT3147308		Guide, Use & Care		Appelez-nous	-
	LIT884421		List, Repair Parts		Appelez-nous	-
