Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3147035 Wrapper, Cabinet Appelez-nous -
2 W10841140 Adhesive, Silastic   (Replaces: 307576) In-Stock Immediately $ 24.92

2 313639 Shelf, Cavity Appelez-nous -
4 313614 Trim, Shelf (front) Appelez-nous -
5 313615 Trim, Shelf (rear) Appelez-nous -
10 330514 Socket, Assembly Appelez-nous -
11 WP3395618 Bulb   (Replaces: 313969) In-Stock Immediately $ 71.33

13 312713 Screw (2) Appelez-nous -
14 3149315 Grille, Air Appelez-nous -
16 3150025 Screw (3) Appelez-nous -
17 313753 Seal, Foam Appelez-nous -
19 WP488729 Screw (15)   (Replaces: 313638) In-Stock Immediately $ 7.01

20 3147034 Trim, Wrapper Lower Appelez-nous -
20 WP488729 Screw (4)   (Replaces: 313638) In-Stock Immediately $ 7.01

22 313663 Rack, Wire Appelez-nous -
23 WP3149478 Support Rack   (Replaces: 313653) Special Order $ 8.64

24 3150202 Frame, Control Panel Appelez-nous -
25 3148253 Microcomputer Appelez-nous -
26 313818 Screw (6) Appelez-nous -
27 313679 Screw Appelez-nous -

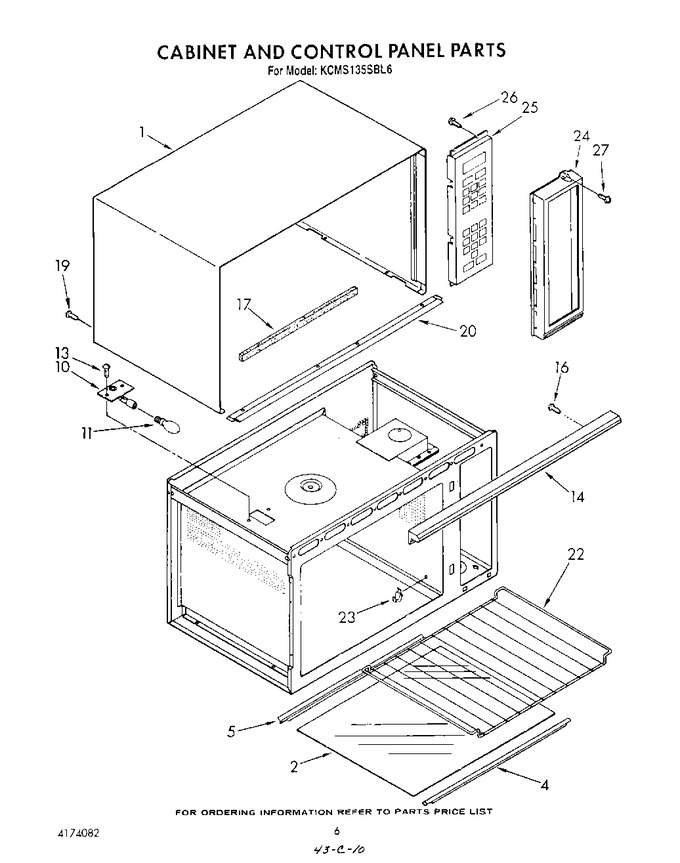

    View Diagram in Separate Window     Print Icon   Print Part List
